Tier-1 cells, 3 checks, stable performance
Sync monitoring, reliable charge/discharge
Precision matching, better consistency/life
Laser welding, low resistance, anti-false weld
100% aging test, no hidden issues
Over-protection + heat-resistant, safe
Low self-discharge, long storage life
Product Specifications

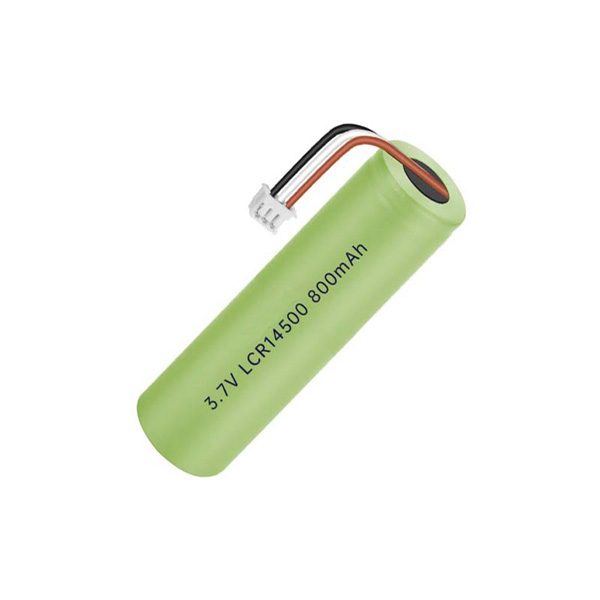

Battery Model: LCR14500
Rated Voltage: 3.7 V
Rated Capacity: 800 mAh
Charging Voltage: Not specified
Standard Charging Current: 400 mA (0.5C)
Termination Current: 8 mA (0.01C)
Maximum Charging Current: 800 mA (1C)
Standard Discharging Current: 400 mA (0.5C)
Maximum Continuous Discharging Current: 2400 mA (3C)
End-of-Discharge Voltage: 2.75 V
Shipping Voltage: 3.7 V ~ 4.0 V
Charging Temperature Range: 0 ~ 45 °C
Discharging Temperature Range: -20 ~ 60 °C
Application Industries
Digital products
Smart home
Handheld terminals
Medical equipment
LED lights
Electric bicycles
Internet of Things (IoT)
Robots
Certifications
UL1642, UL2054, CB, IEC62133, PSE, KC, BIS, CQC, UN38.3, MSDS, REACH, RoHS
