Nominal Voltage: 11.1 V
Nominal Capacity: 2000 mAh
Working temperature range: -20℃ ~ +60℃
Sufficient battery capacity
Outstanding cycle life
Optimized PCM design
In series connection or in parallel connection is allowed
Battery Chemistry: Lithium Ion Polymer
Battery Terminations: PC Pins (Horizontal) / (Vertical), SMT (SMD) Mount, Solder Tabs, Wires, Cables with Connectors.
Battery Customizing: Customizing service: flexible size, lipo battery cell pack factory.
Original lipo battery factory from raw material to battery cell and battery pack.

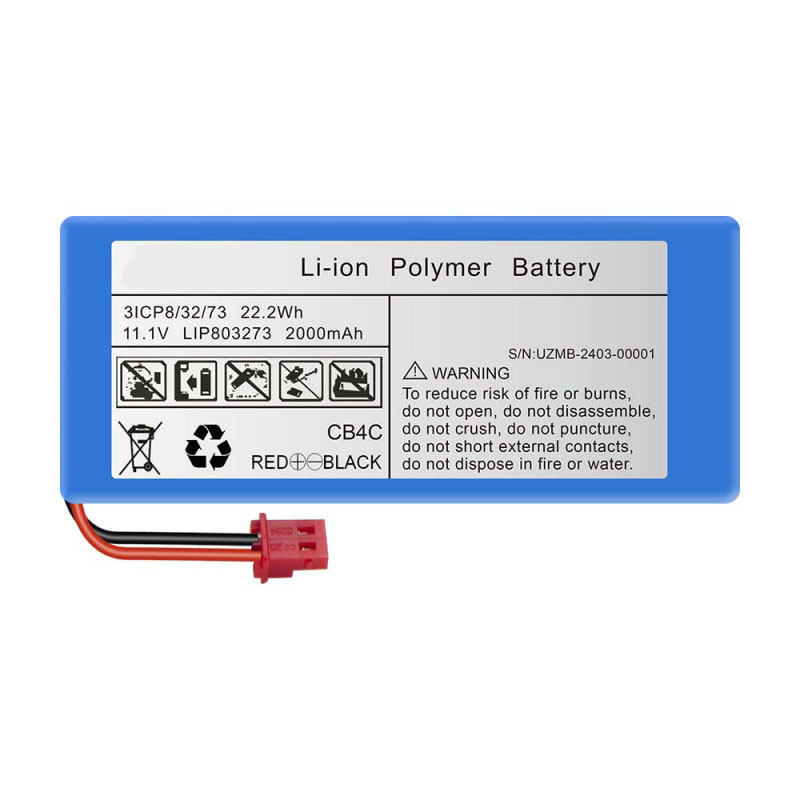

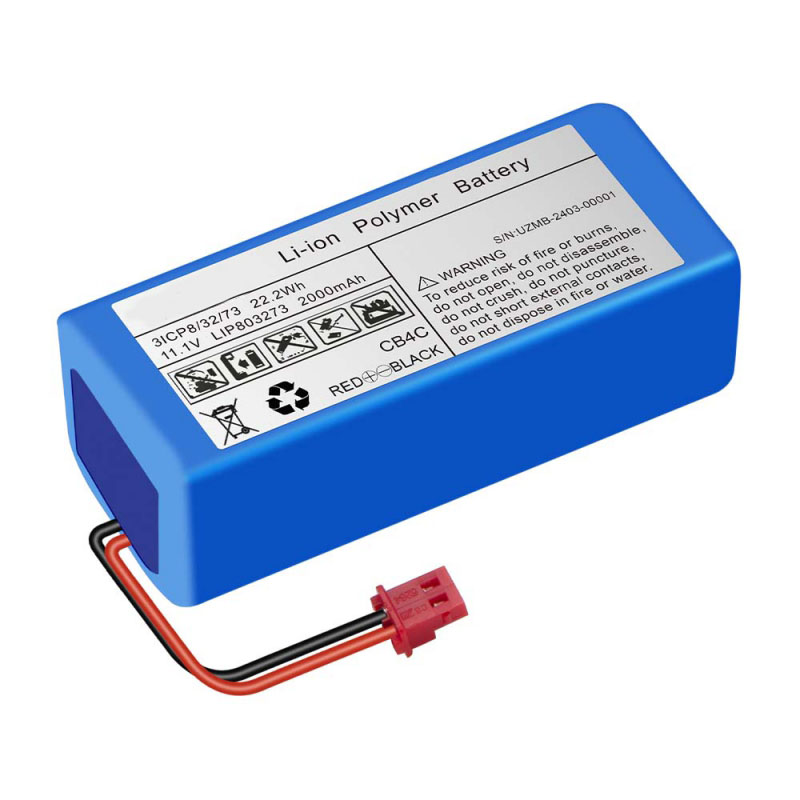

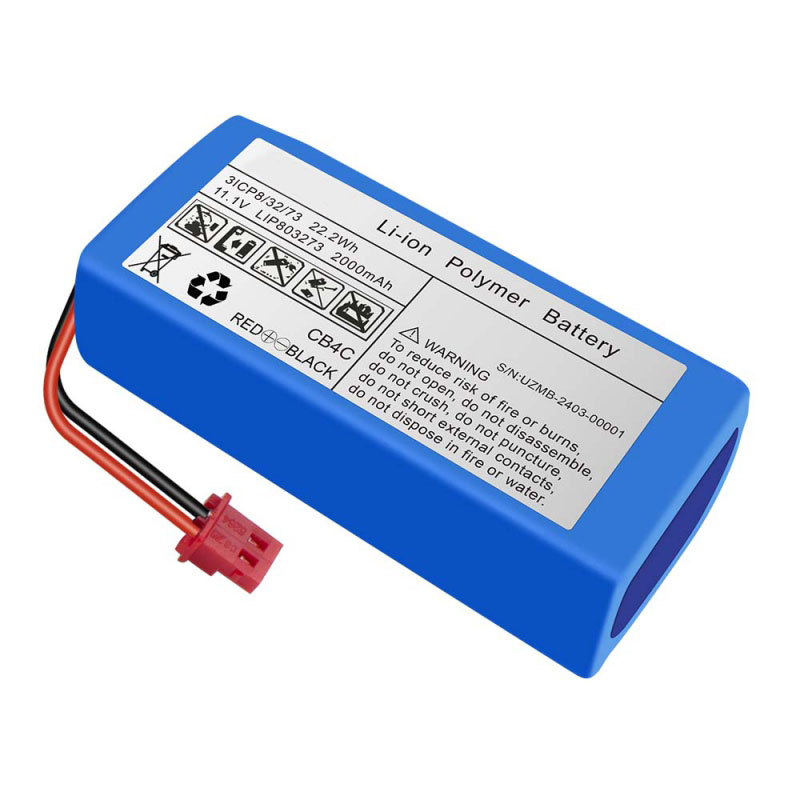

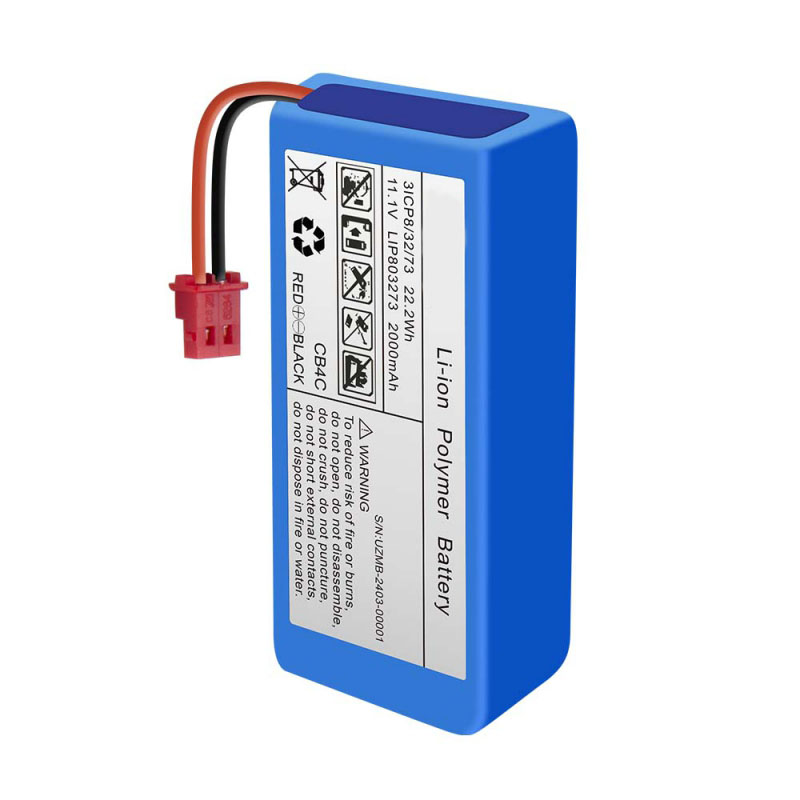

11.1V High Density LiPo Battery 2000mAh
Product Specification
Battery model 11.1V LIP803273 2000mAh
Nominal voltage 11.1V
Nominal capacity 2000mAh
Minimum capacity 2000mAh
Charging voltage 12.6V
Standard charging current 400mA (0.2C)
End current 20mA (0.01C)
Max. charging current 1000mA (0.5C)
Standard discharging current 400mA (0.2C)
Max. discharging current 2000mA (1C)
End voltage of discharge 9V
Dimension of cell 8.0*32*73mm
Charging temperature range 0~45℃
Discharging temperature range -20~60℃
Connector Molex, JST, Hirose etc
Protection Circuit Module (PCM) Overcharge protect, over-discharge protect, over current protect, short-circuit protect
Cycle life ≥80% capacity after 500 times standard cycles
Warantty life 12 months
Certificates
UN38.3, MSDS, IEC62133-2:2017, CB, CQC, KC, BIS, KSE, UL, Reach, RoHS etc.
