Nominal Voltage: 3.7 V
Nominal Capacity: 7500 mAh
Working temperature range: -20℃ ~ +60℃
Excellent safe
Small and light-weight
None-memory battery
Environment friendly battery
Optimized PCM design
In series connection or in parallel connection is allowed
Battery Chemistry: Lithium Ion Polymer
Battery Terminations: PC Pins (Horizontal) / (Vertical), SMT (SMD) Mount, Solder Tabs, Wires, Cables with Connectors.
Customizing service: flexible size, customized battery, lipo battery cell pack factory.
Original lipo battery factory from raw material to battery cell and battery pack.
SKU: 3.7V LIP698196 7500mAh
Categories: High Density Battery, Lithium Polymer Battery
Tags: Lipo battery, Lithium ion battery, Lithium polymer battery, rechargeable battery

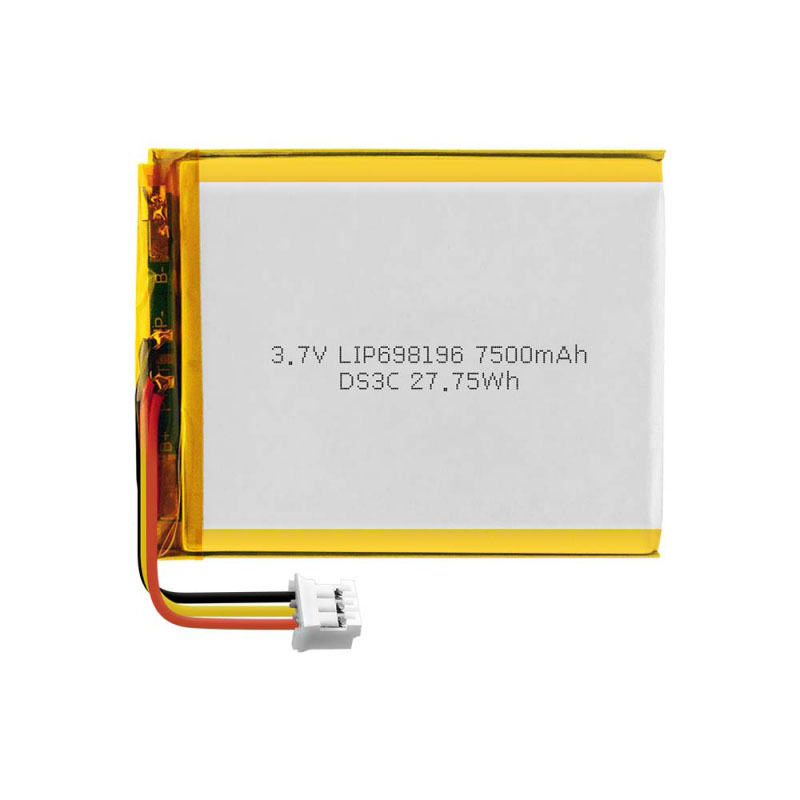

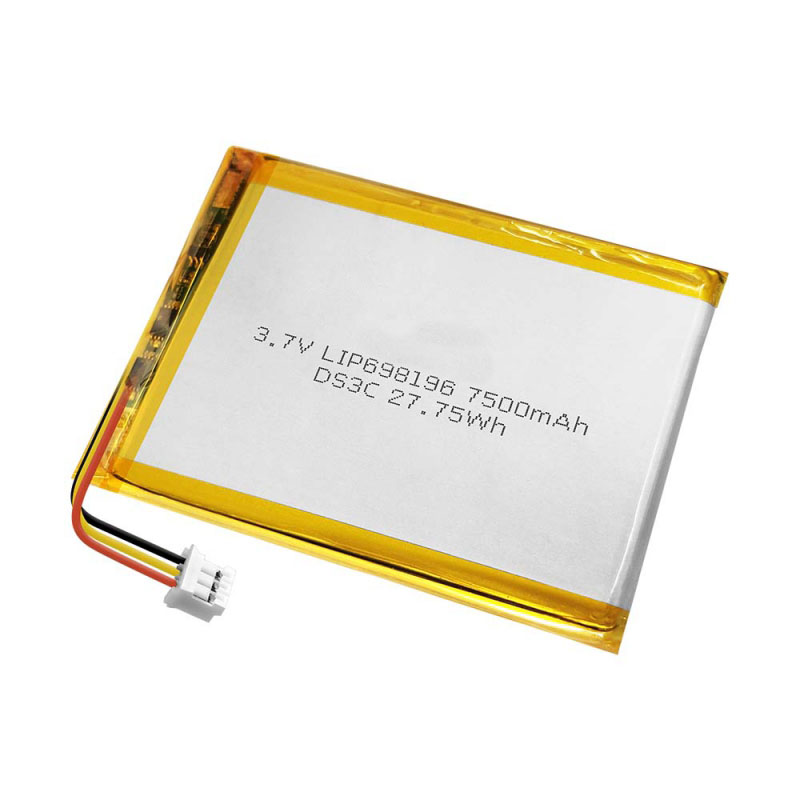

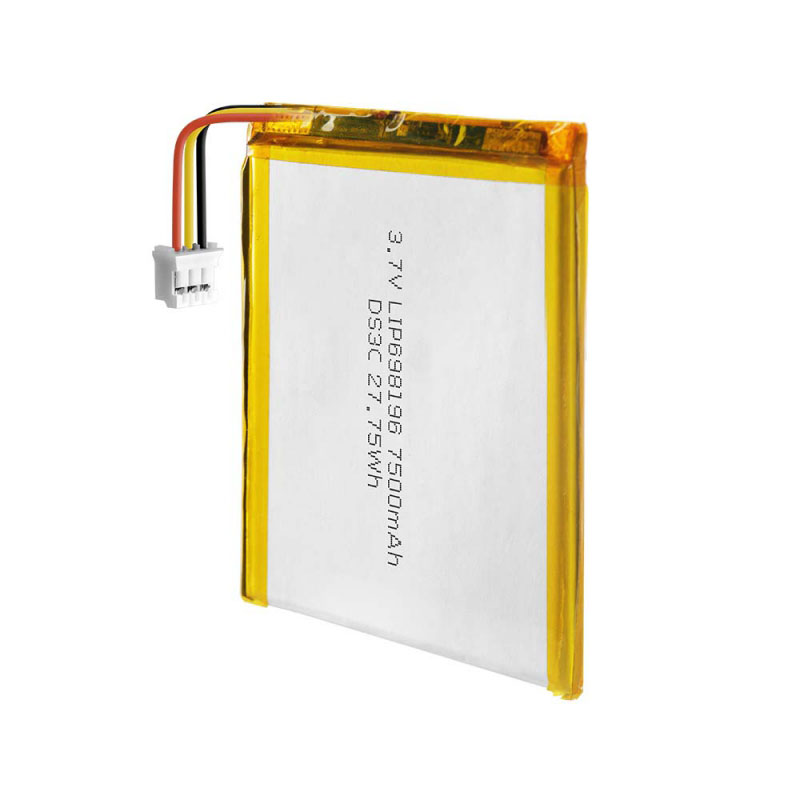

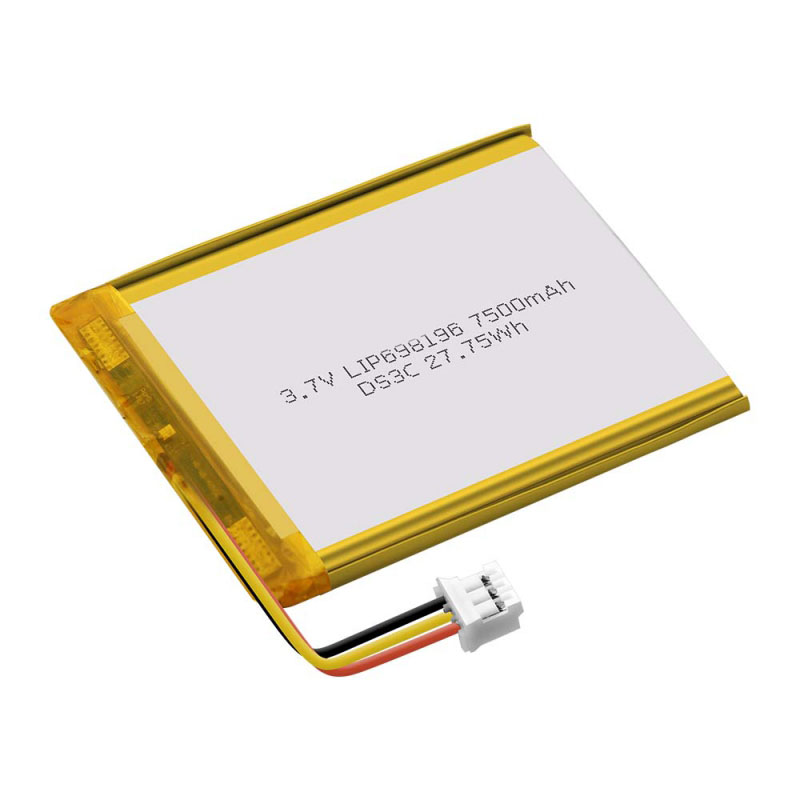

3.7V LiPo Battery High Density 7500mAh
Product Specification
Battery model 3.7V LIP698196 7500mAh
Nominal voltage 3.7V
Nominal capacity 7500mAh
Minimum capacity 7500mAh
Charging voltage 4.2V
Standard charging current 1500mA (0.2C)
End current 75mA (0.01C)
Max. charging current 3750mA (0.5C)
Standard discharging current 1500mA (0.2C)
Max. discharging current 7500mA (1C)
End voltage of discharge 3.0V
Dimension of cell 6.9*81*96mm
Charging temperature range 0~45℃
Discharging temperature range -20~60℃
Connector Molex, JST, Hirose etc
Protection Circuit Module (PCM) Overcharge protect, over-discharge protect, over current protect, short-circuit protect
Cycle life ≥80% capacity after 500 times standard cycles
Warantty life 12 months
Certificates
UN38.3, MSDS, IEC62133-2:2017, CB, CQC, KC, BIS, KSE, UL, Reach, RoHS etc.
