Nominal Voltage: 3.7 V
Nominal Capacity: 900 mAh
Working temperature range: -20℃ ~ +60℃
Low internal resistance
Sufficient battery capacity
Outstanding cycle life
Optimized PCM design
In series connection or in parallel connection is allowed
Battery Chemistry: Lithium Ion Polymer
Battery Terminations: PC Pins (Horizontal) / (Vertical), SMT (SMD) Mount, Solder Tabs, Wires, Cables with Connectors.
Customizing service: flexible size, customized battery, lipo battery cell pack factory.
Original lipo battery factory from raw material to battery cell and battery pack.

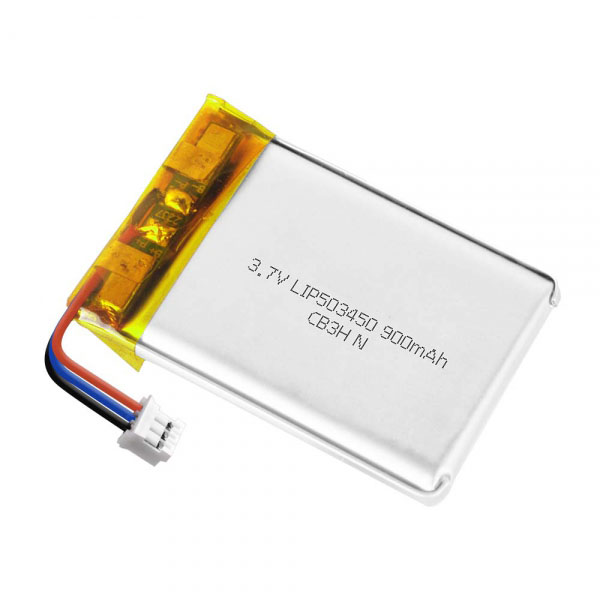

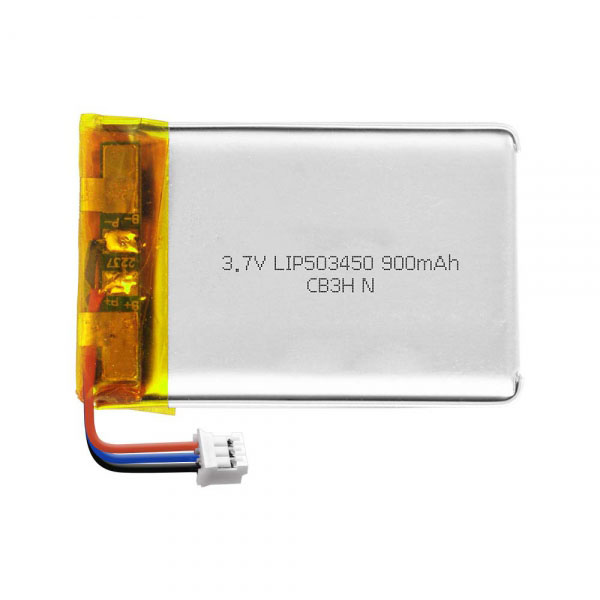

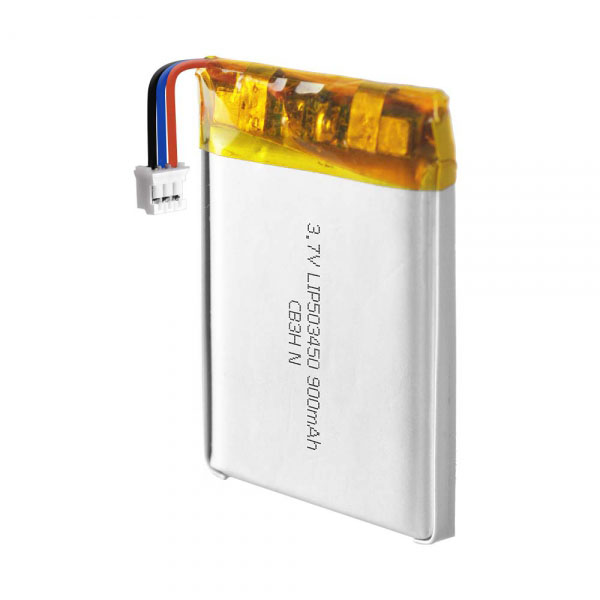

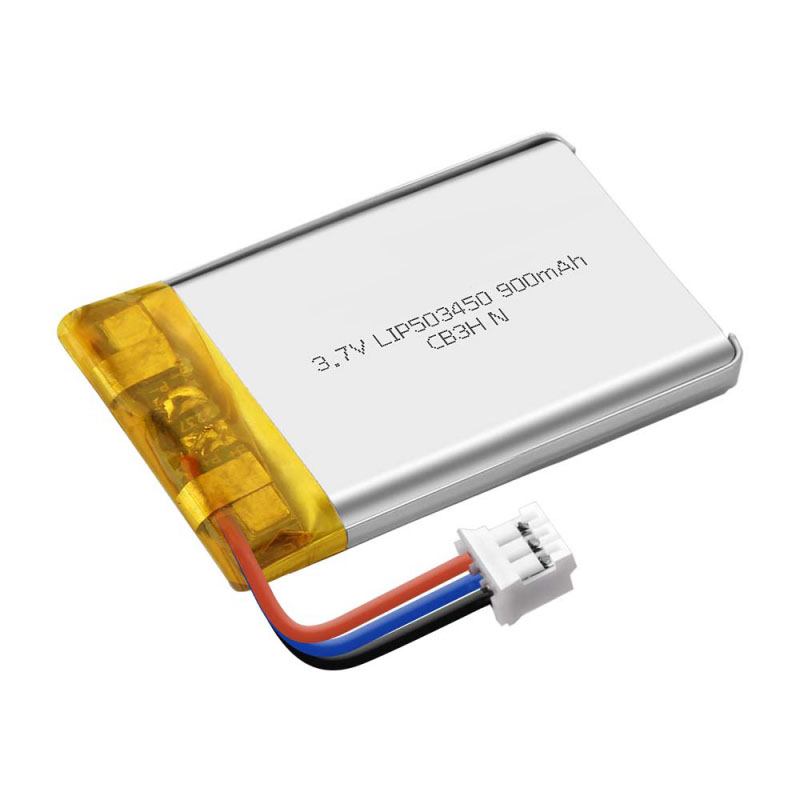

SKU: 3.7V LIP503450 900mAh
Categories: High Density Battery, Lithium Polymer Battery
Tags: Lipo battery, Lithium ion battery, Lithium polymer battery, rechargeable battery
3.7V Lithium Polymer Battery High Density 900mAh
Product Specification
Battery model 3.7V LIP503450 900mAh
Nominal voltage 3.7V
Nominal capacity 900mAh
Minimum capacity 900mAh
Charging voltage 4.45V
Standard charging current 180mA (0.2C)
End current 9mA (0.01C)
Max. charging current 300mA (0.5C)
Standard discharging current 180mA (0.2C)
Max. discharging current 900mA (1C)
End voltage of discharge 3.0V
Dimension of cell 5.0*34*50mm
Charging temperature range 0~45℃
Discharging temperature range -20~60℃
Connector Molex, JST, Hirose etc
Protection Circuit Module (PCM) Overcharge protect, over-discharge protect, over current protect, short-circuit protect
Cycle life ≥80% capacity after 500 times standard cycles
Warantty life 12 months
Certificates
UN38.3, MSDS, IEC62133-2:2017, CB, CQC, KC, BIS, KSE, UL, Reach, RoHS etc.
