Working temperature range:-40~60 centigrade
Nominal Voltage: 3.7 V
Nominal Capacity: 100 mAh
High energy density
Excellent safe
Small and light-weight
None-memory battery
Environment friendly battery
High battery consistency
Battery Chemistry: Lithium Ion Polymer
Battery Terminations: PC Pins (Horizontal) / (Vertical), SMT (SMD) Mount, Solder Tabs, Wires, Cables with Connectors.
Customizing service: flexible size, customized battery, li ion poly battery cell pack factory.
SKU: 3.7V LIP301819 100mAh
Categories: High Temperature Battery, Lithium Polymer Battery
Tags: High temperature lithium battery, High temperature lithium polymer battery, rechargeable battery, Rechargeable lipo battery
3.7V li ion poly battery low temperature 100mAh
Low Temperature LiPo Battery, Work In -40℃
Product Specification

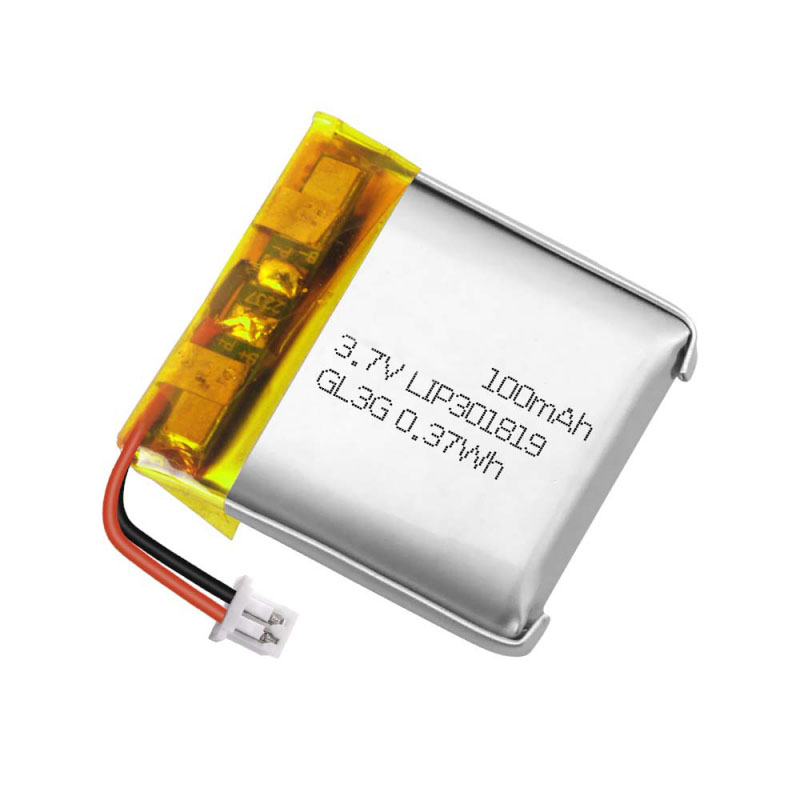

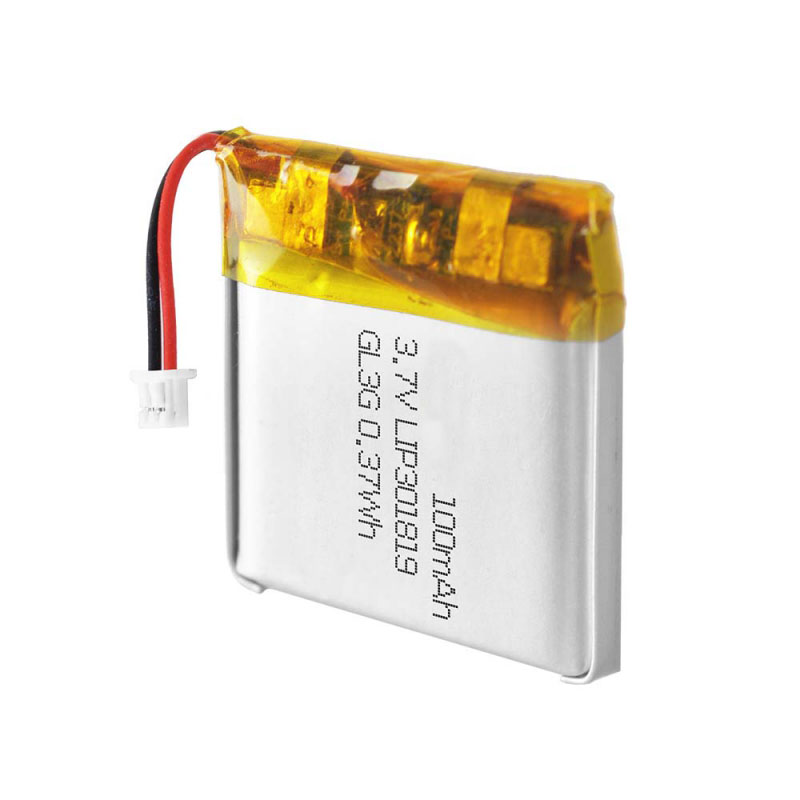

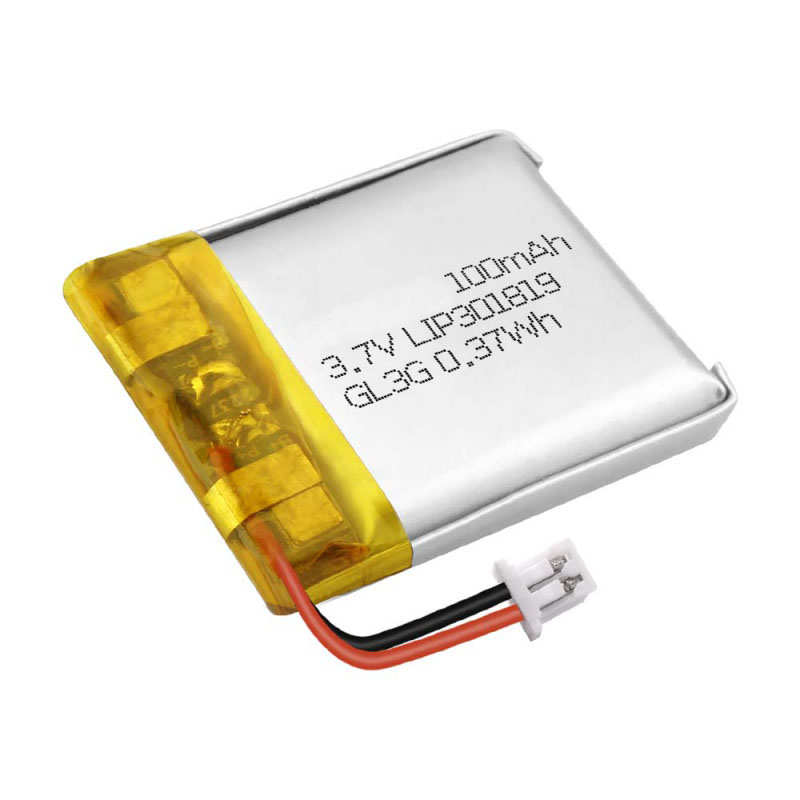

Battery model 3.7V LIP301819 100mAh
Nominal voltage 3.7V
Nominal capacity 100mAh
Minimum capacity 100mAh
Charging voltage 4.2V
Standard charging current 20mA (0.2C)
End current 1mA (0.01C)
Max. charging current 50mA (0.5C)
Standard discharging current 20mA (0.2C)
Max. discharging current 100mA (1C)
End voltage of discharge 3.0V
Dimension of cell 3.0*18*19mm
Charging temperature range 0~45℃
Discharging temperature range -40~60℃
Connector Molex, JST, Horise connectors etc
NTC 103AT 10K 1%@ +25C B3380
Protection Circuit Module (PCM) Overcharge protect,over-discharge protect, over current protect, short-circuit protect, temperature proetct etc
Warranty life 12 months
Certificates
UN38.3, MSDS, IEC62133, CB, KC, BIS, PSE, UL1642, UL2054, Reach, RoHS etc.
