Working temperature range:-40~60 centigrade
Voltage: 3.7 V
Capacity: 150 mAh
Long cycle life: capacity retention is >80% after 500 times standard cycles
Low internal resistance
Sufficient battery capacity
Outstanding cycle life
Optimized PCM design
In series connection or in parallel connection is allowed
Battery Chemistry: Li Ion Polymer
Battery Terminations: PC Pins (Horizontal) / (Vertical), SMT (SMD) Mount, Solder Tabs, Wires, Cables with Connectors.
Customizing service: flexible size, customized battery, lithium poly battery cell pack factory.
SKU: 3.7V LIP352322 150mAh
Categories: Lithium Polymer Battery, Low Temperature Battery
Tags: customized low temperature lipo battery, low temperature battery technology, low temperature lithium polymer battery, Low temperature rechargeable battery

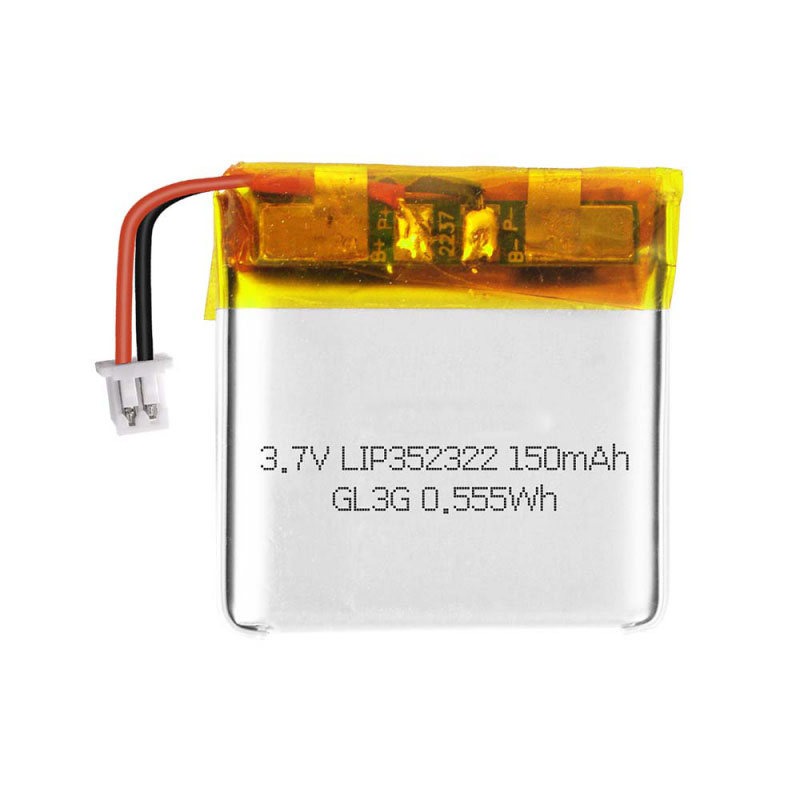

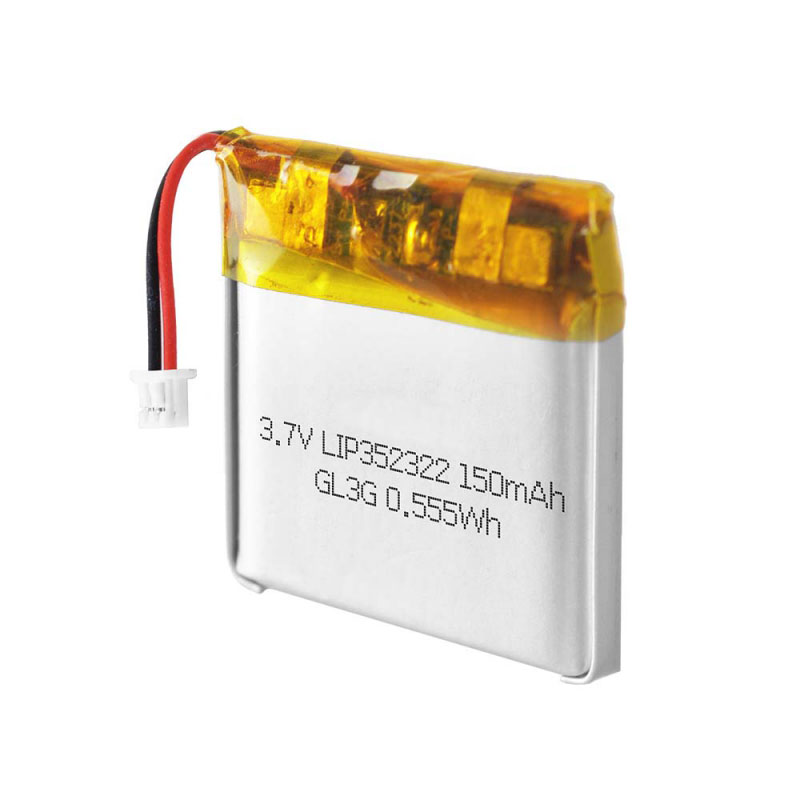

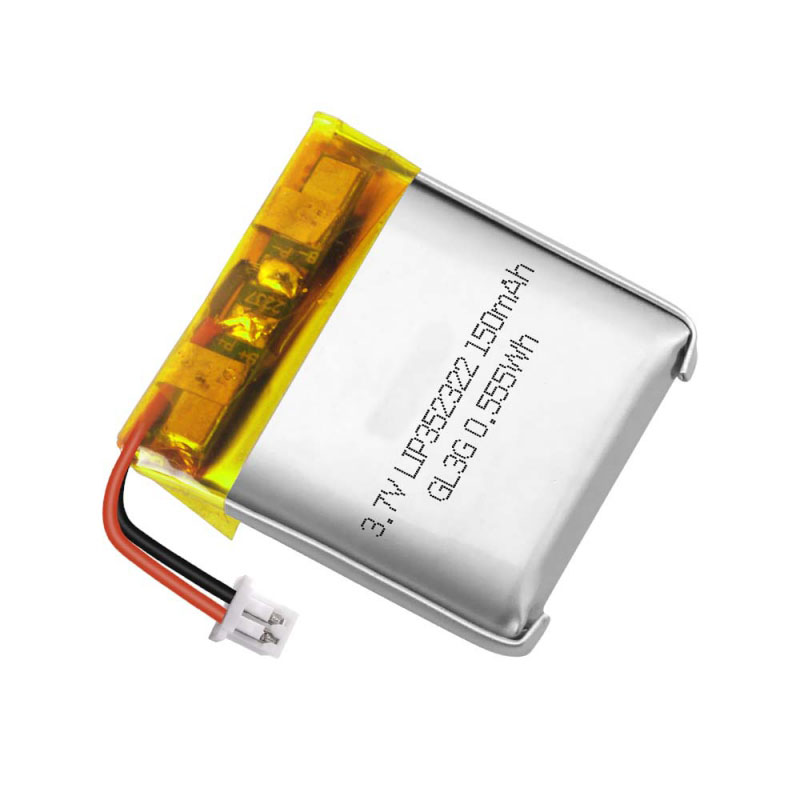

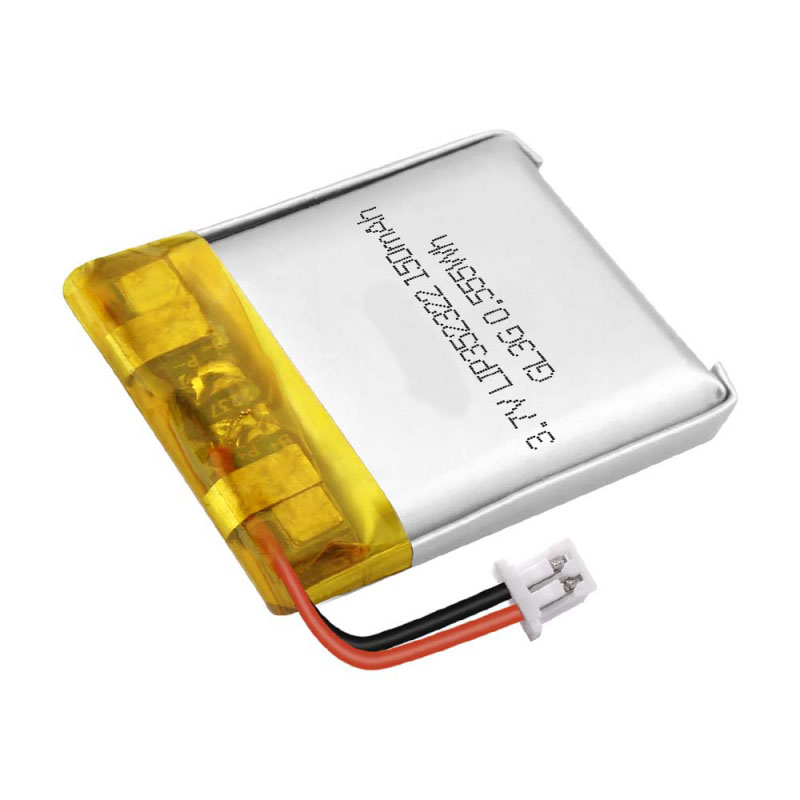

3.7V low temperature li poly battery 150mAh
Low Temperature LiPo Battery, Work In -40℃
Product Specification
Battery model 3.7V LIP352322 150mAh
Nominal voltage 3.7V
Nominal capacity 150mAh
Minimum capacity 150mAh
Charging voltage 4.2V
Standard charging current 30mA (0.2C)
End current 1.5mA (0.01C)
Max. charging current 75mA (0.5C)
Standard discharging current 30mA (0.2C)
Max. discharging current 150mA (1C)
End voltage of discharge 3.0V
Dimension of cell 3.5*23*22mm
Charging temperature range 0~45℃
Discharging temperature range -40~60℃
Connector Molex, JST, Horise connectors etc
NTC 103AT 10K 1%@ +25C B3380
Protection Circuit Module (PCM) Overcharge protect,over-discharge protect, over current protect, short-circuit protect, temperature proetct etc
Warranty life 12 months
Certificates
UN38.3, MSDS, IEC62133, CB, KC, BIS, PSE, UL1642, UL2054, Reach, RoHS etc.
