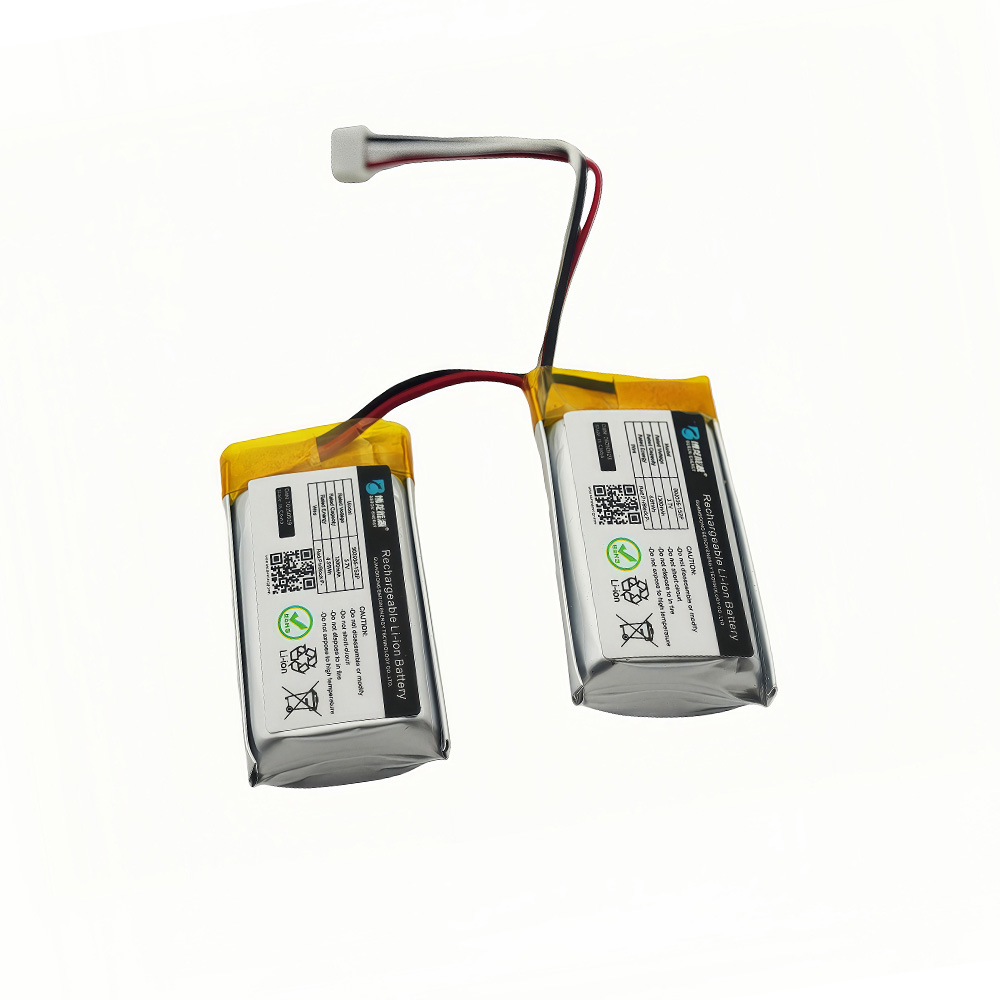

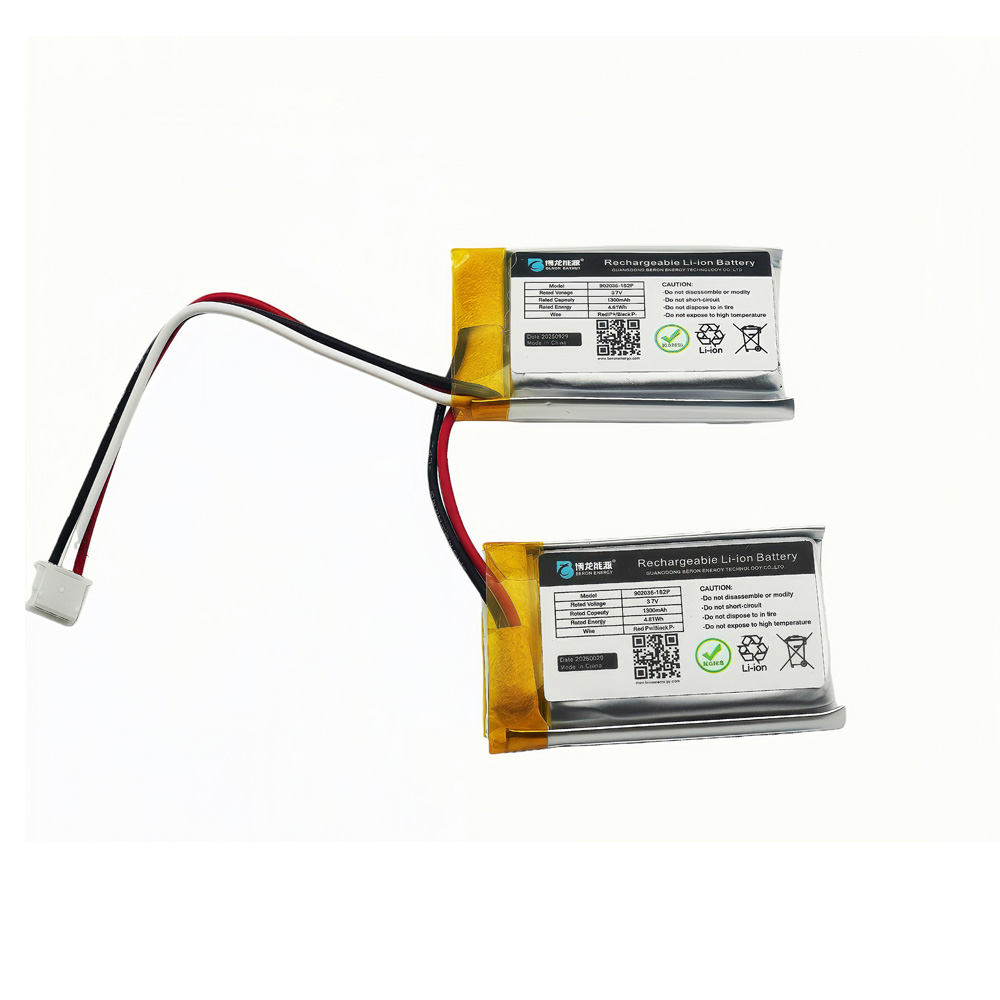

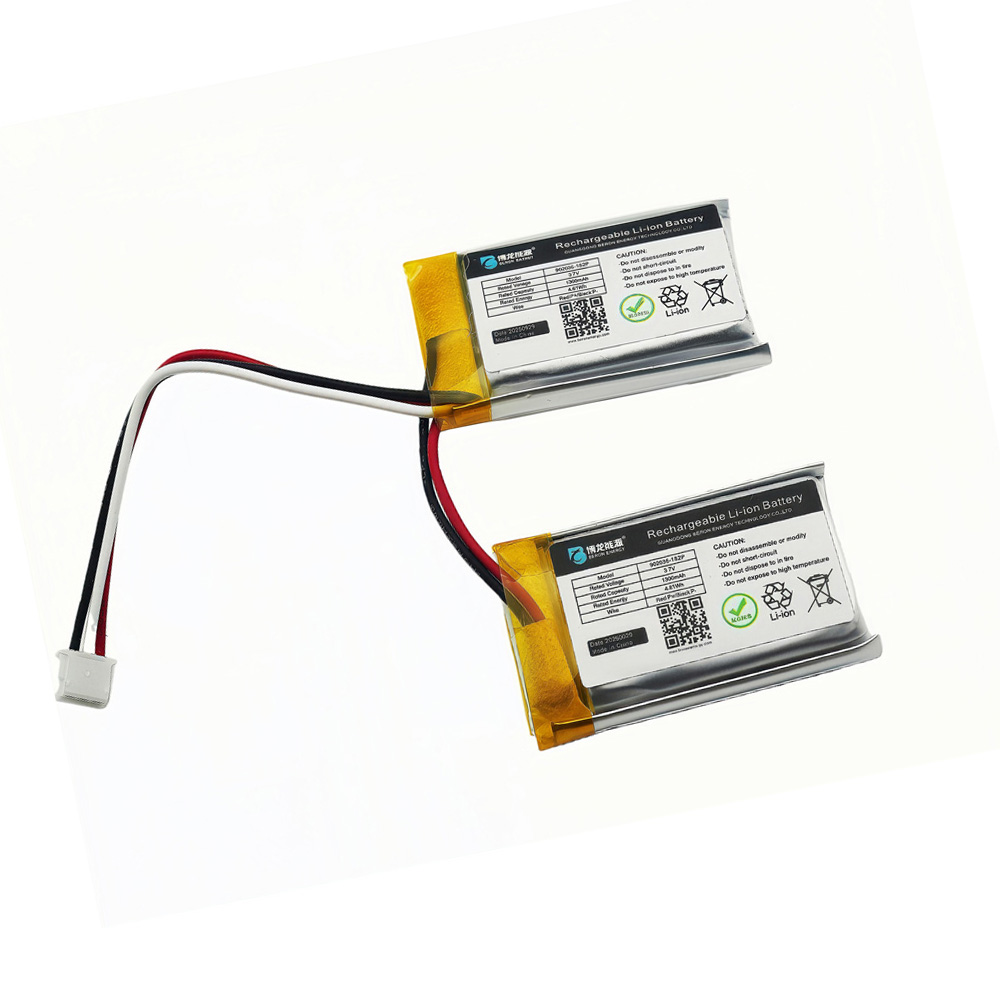

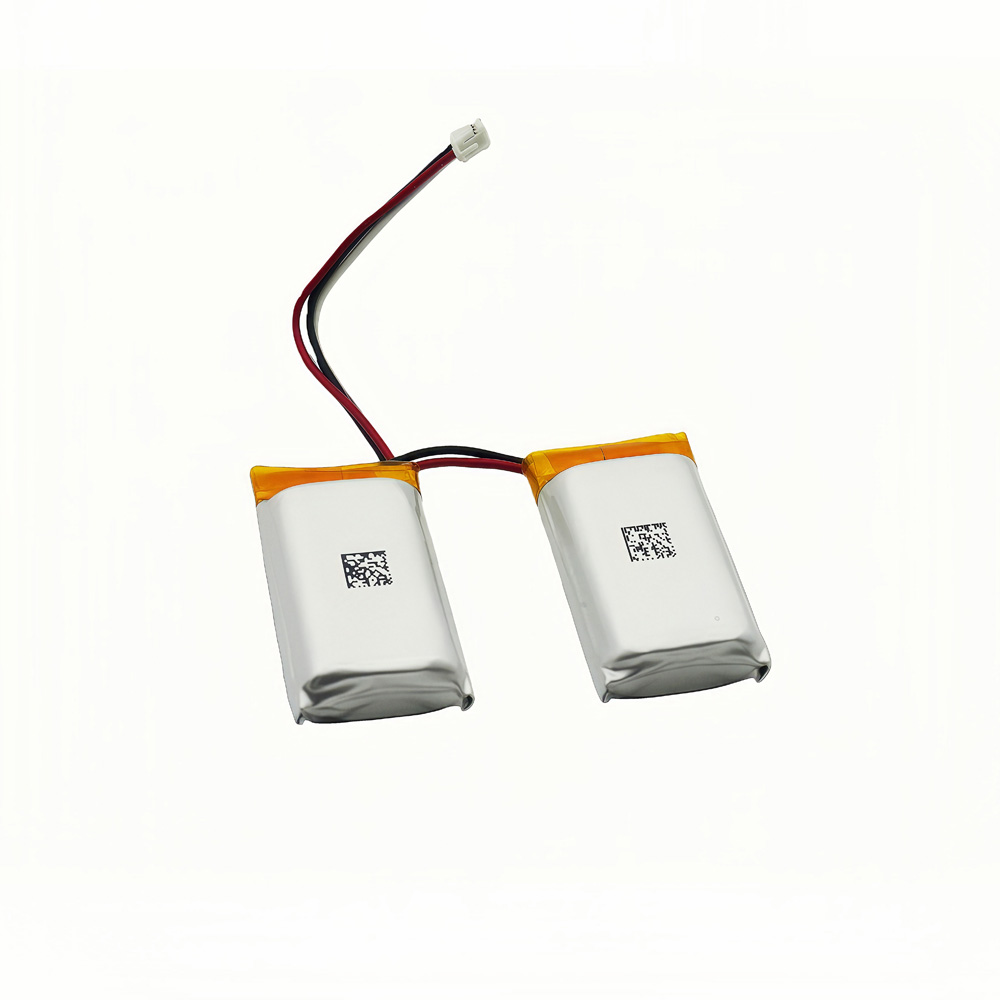

BL 902035 3.7V 650mAh 1S2P
BL 902035 3.7V 650mAh 1S2P
Model
: 902035 (1S2P)
Rated Capacity
: 1300mAh
Nominal Voltage
: 3.7V
Cycle Life
: ≥500 cycles
Operating Temperature
: Charge: 10℃ to 45℃; Discharge: -20℃ to 60℃
Applications
: Portable medical devices, smart wearables, consumer electronics and other fields requiring high capacity and long endurance.
GET A QUOTE
Description
Model
: 902035 (1S2P)
Rated Capacity
: 1300mAh (0.2C discharge, 4.2V to 3.0V)
Nominal Voltage
: 3.7V
Fully Charge Voltage
: 4.2V
Discharge Cut-off Voltage
: 3.0V
Standard Charge Method
: 0.2C CC/CV charge
Max. Charge Current
: 1.0C (Ambient temperature: 15℃~45℃)
Max. Discharge Current
: Pack 1.5C / Cell 3.0C (Ambient temperature: 15℃~45℃)
Cycle Life
: ≥500 cycles (Capacity retention ≥80%)
Operating Temperature
: Charge: 10℃~45℃; Discharge: -20℃~60℃
Connector/Cable
: ZH1.5-3P reverse connector, UL3302 24AWG cable (Red/White/Black)
Applications
: Portable medical devices, smart wearables, consumer electronics, etc.
