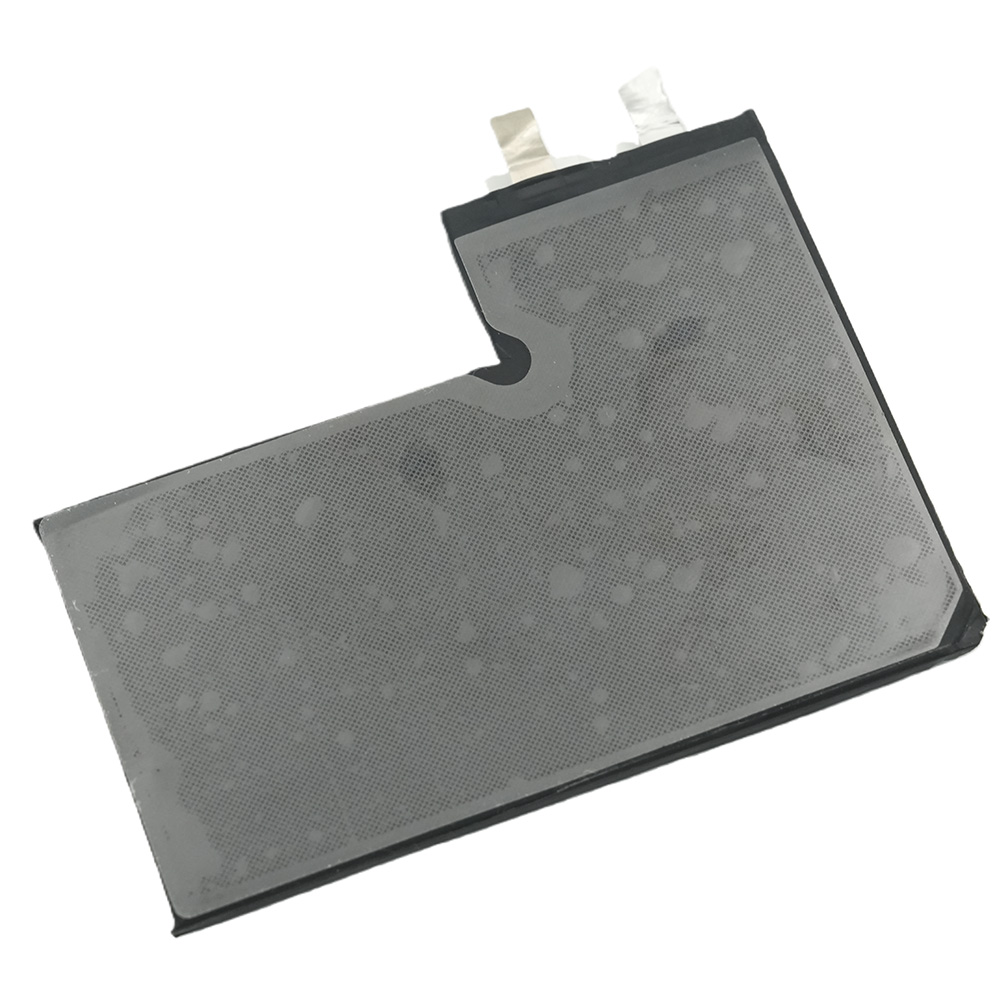

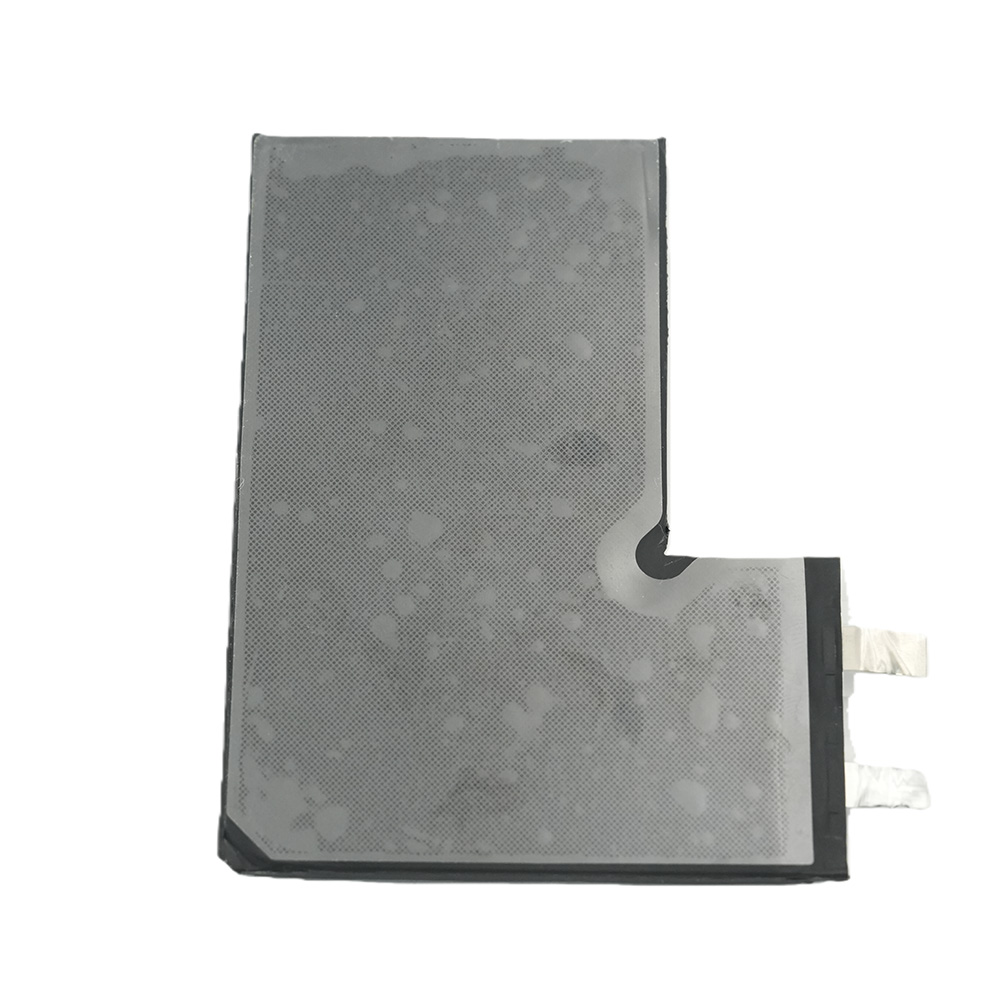

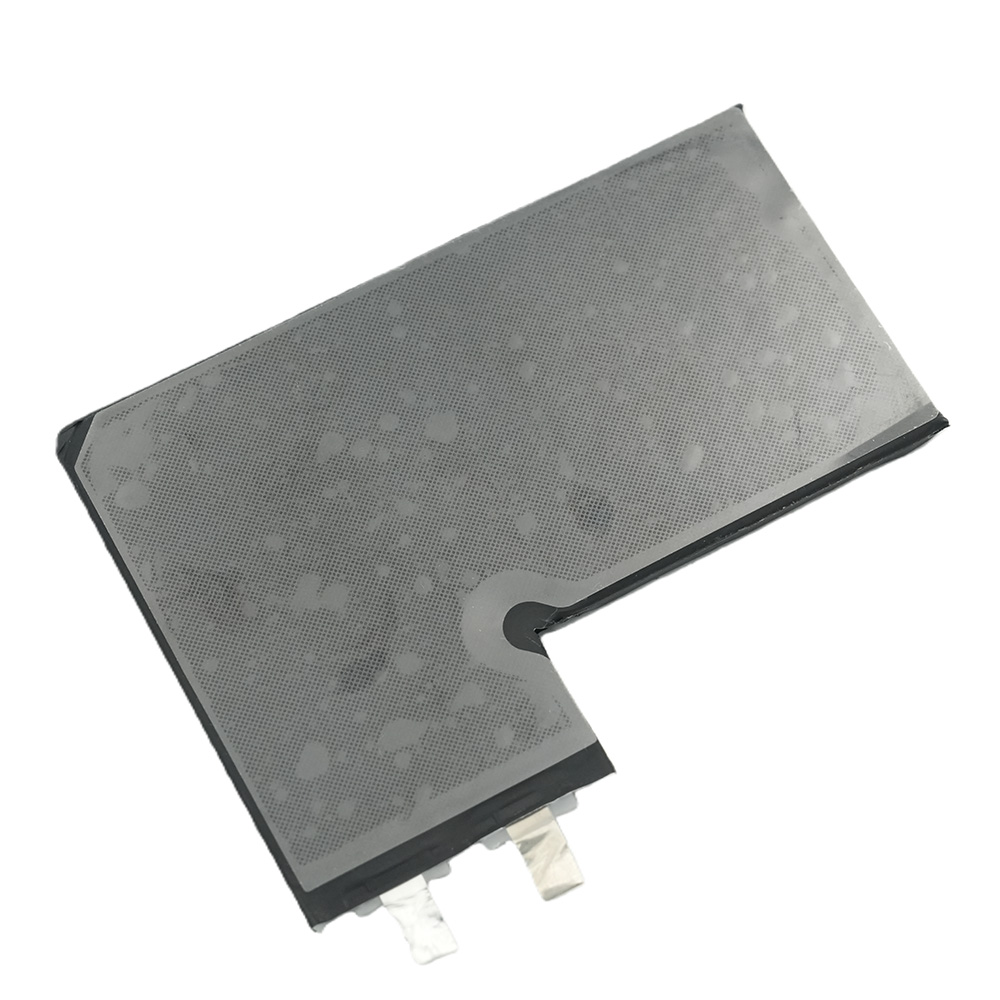

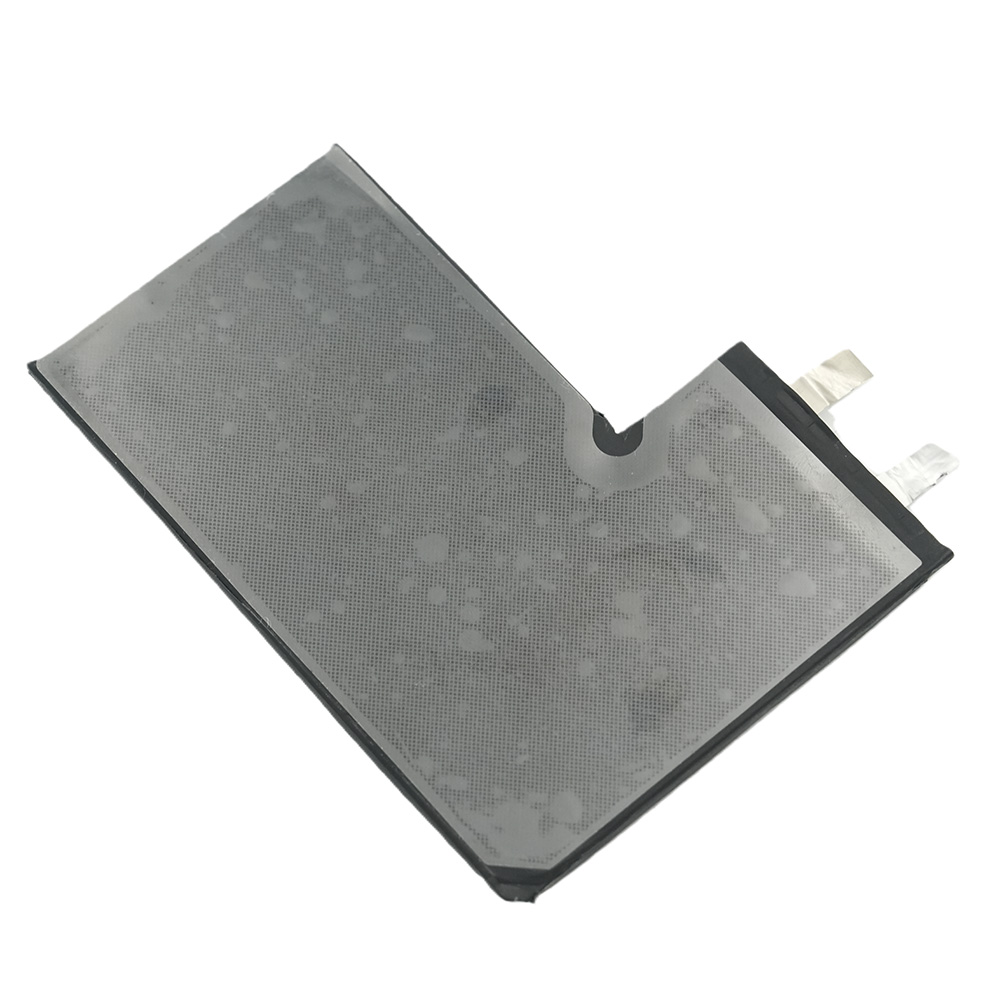

Irregular-shaped batteries B

Cell model：JHY468966-12PM

Nominal voltage：3.85V

Minimum capacity：3690mAh

Charging voltage：4.45V

Discharging cut-off voltage：3.2V

Weight：51.5g

Cell impedance：≤20mΩ

Operating temperature：Charging:0°C ~ 45°C、Discharging: -20°C ~60°C

Reference standard：GB/T 18287-2013、IEC/EN61960、UL1642

GET A QUOTE

Description

Cell model：JHY468966-12PM

Nominal voltage：3.85V

Minimum capacity：3690mAh

Charging voltage：4.45V

Discharging cut-off voltage：3.2V

Weight：51.5g

Cell impedance：≤20mΩ

Operating temperature：Charging:0°C ~ 45°C、Discharging: -20°C ~60°C

Reference standard：GB/T 18287-2013、IEC/EN61960、UL1642
