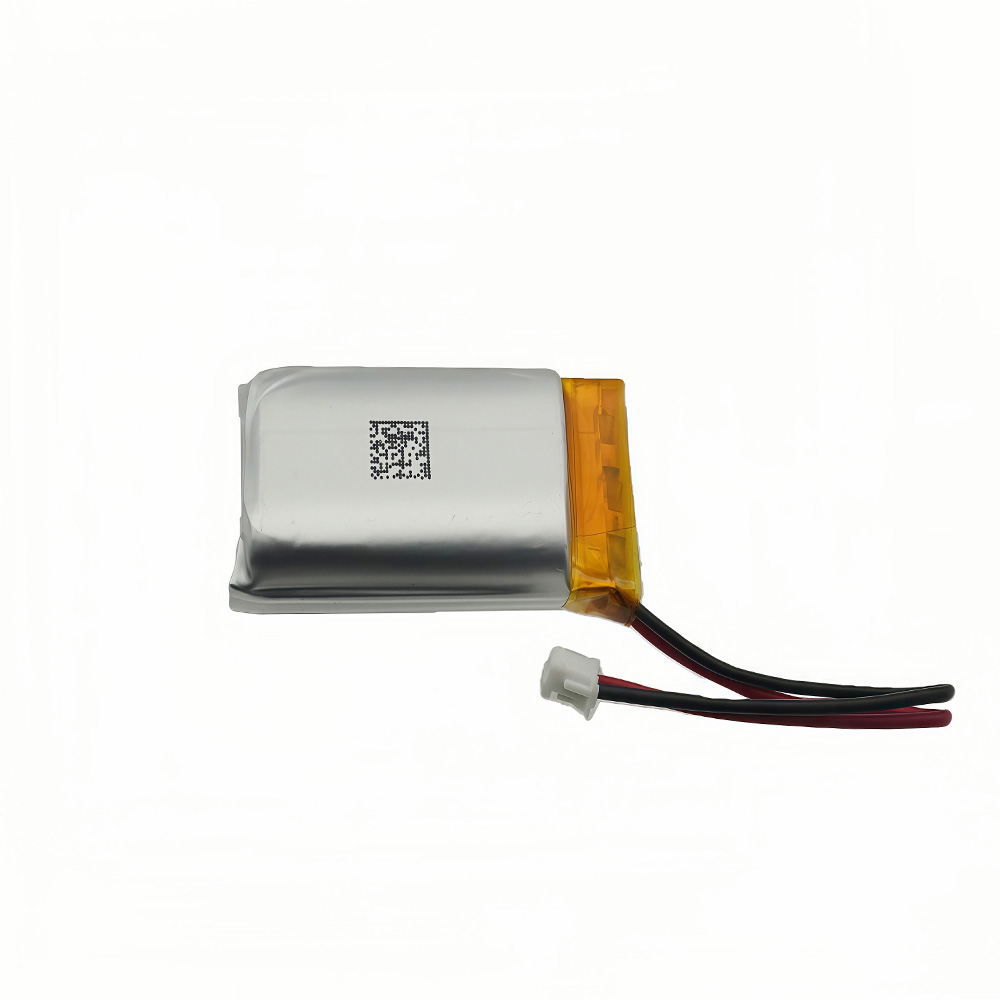

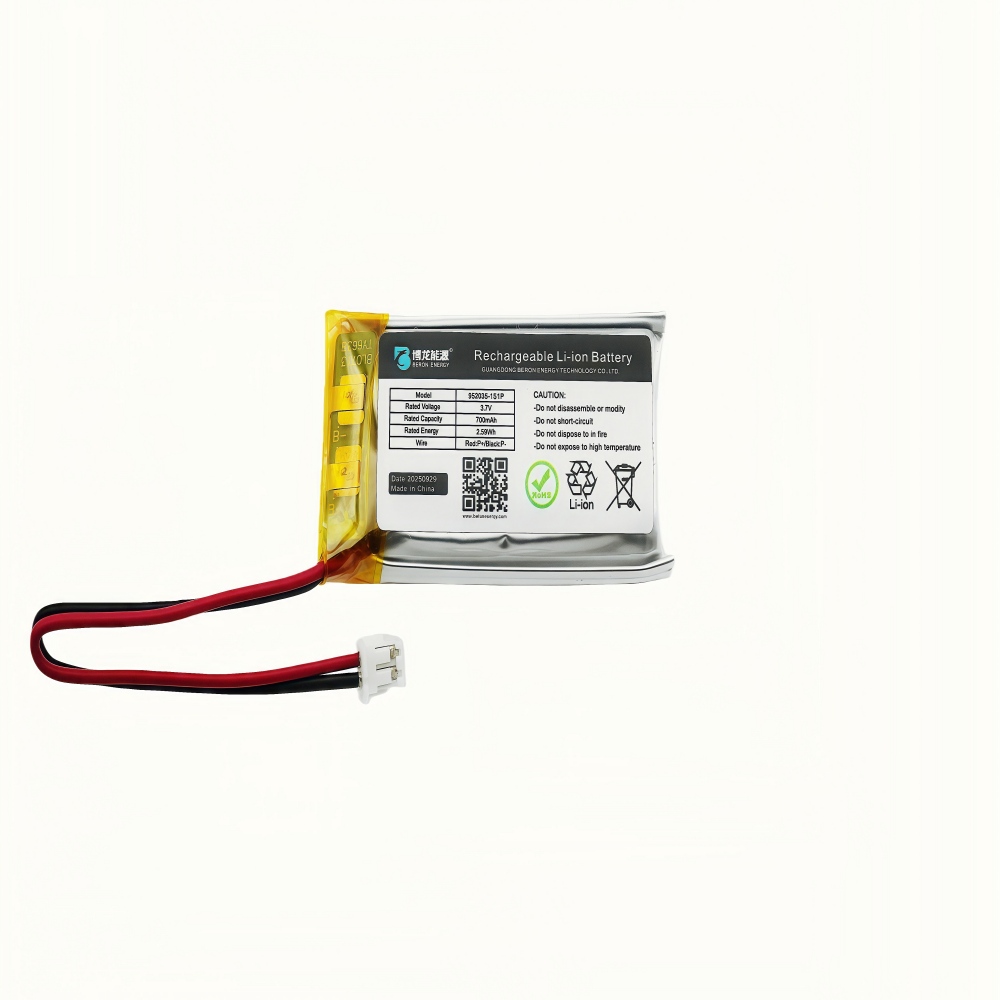

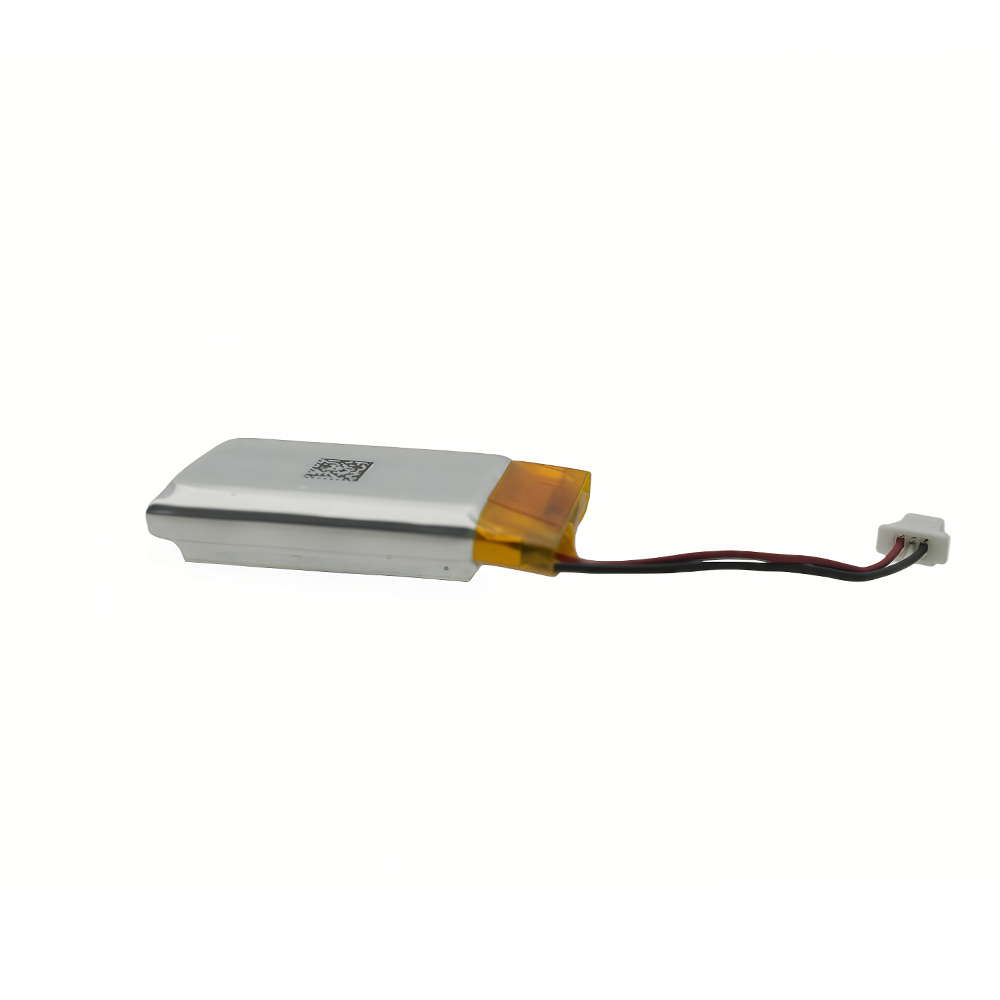

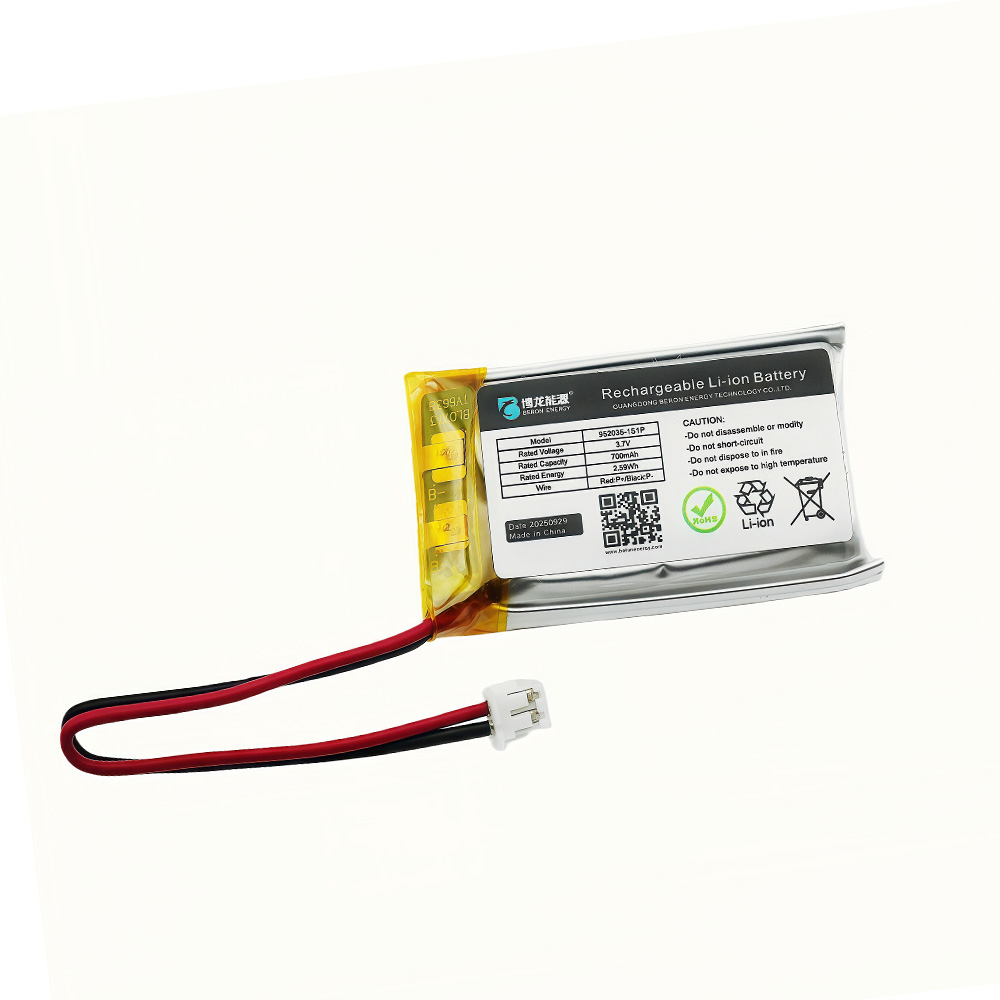

BL 952035 3.7V 700mAh
  • Model:​ 952035
  • Rated Capacity:​ 700mAh
  • Nominal Voltage:​ 3.7V
  • Cycle Life:​ ≥ 500 cycles (to 80% initial capacity)
  • Standard Charging Current:​ 0.2C (1.0C max within 15℃~45℃)
  • Max. Discharge Current:​ Continuous 1C / Instantaneous 2C (at 15℃~60℃)
  • Operating Temperature:
    • Charging:​ 15℃ to 45℃
    • Discharging:​ -10℃ to 60℃
  • Dimensions (Max.):​ Thickness ≤ 9.6mm (as shipped), Width ≤ 20.6mm, Height ≤ 38.5mm
  • Typical Applications:

    Portable medical devices, smart wearables (e.g., headsets, trackers), GPS locators, IoT devices, and various consumer electronics.

GET A QUOTE

Description

Core Specifications:

  • Model:​ 952035
  • Rated Capacity:​ 700mAh
  • Nominal Voltage:​ 3.7V
  • Standard Charge Method:​ 0.2C CC/CV to 4.2V
  • Max. Charge Current:​ 1.0C (at 15℃~45℃)
  • Max. Discharge Current:​ Continuous 1C, Instantaneous 2C (at 15℃~60℃)
  • Dimensions (Max.):​ 9.6mm (T) × 20.6mm (W) × 38.5mm (H)
  • Terminal & Cable:​ 1.5-2P connector, UL3302 24AWG wire, Length 65±5 mm

Key Features:

  • Cycle Life:​ ≥500 cycles (Capacity retention ≥80%)
  • Operating Temperature:​ Charge: 15℃ to 45℃; Discharge: -10℃ to 60℃
  • Built-in Protection:​ PCM with over-charge, over-discharge, and over-current protection
  • ESD Protection:​ Air discharge ±15kV, Contact discharge ±8kV
