High temperature feature of battery: support the shell-integrated thermoforming process at 110°C for 5 minutes.
Working temperature range: -20~60℃
Nominal Voltage: 3.7 V
Nominal Capacity: 160 mAh
High energy density
Low internal resistance
Sufficient battery capacity
Outstanding cycle life
Battery Chemistry: Li Ion Poly
Battery Terminations: PC Pins (Horizontal) / (Vertical), SMT (SMD) Mount, Solder Tabs, Wires, Cables with Connectors.
Customizing service: flexible size, customized battery,lithium polymer battery cell pack factory.

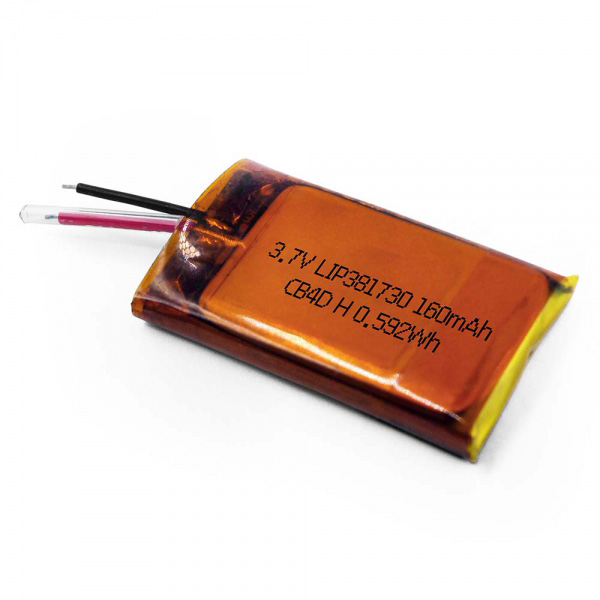

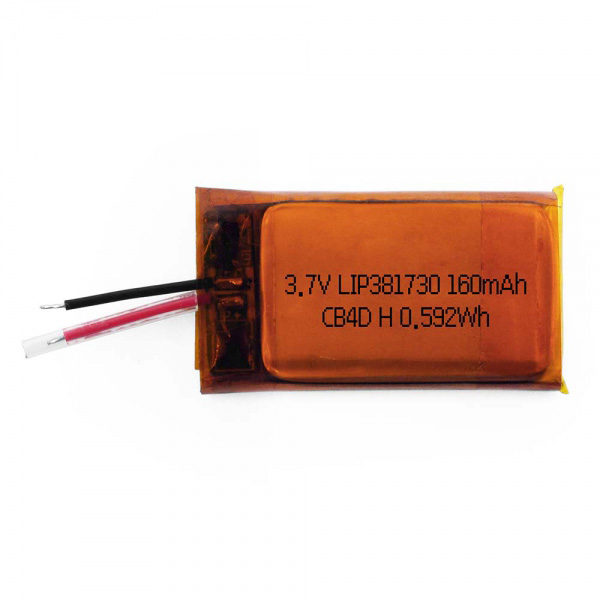

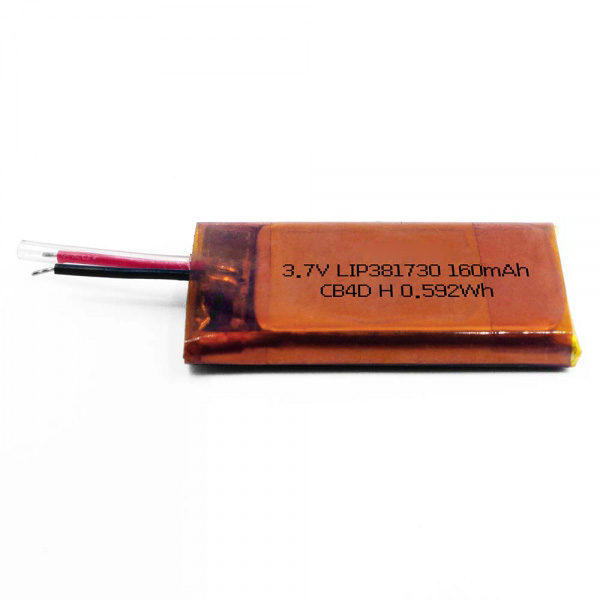

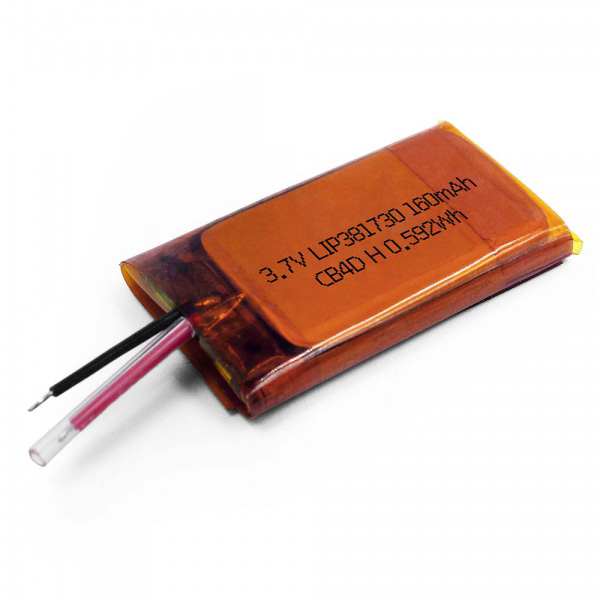

Battery model 3.7V LIP381730 160mAh
Nominal voltage 3.7V
Nominal capacity 160mAh
Minimum capacity 160mAh
Charging voltage 4.2V
Standard charging current 32mA (0.2C)
End current 1.6mA (0.01C)
Max. charging current 80mA (0.5C)
Standard discharging current 32mA (0.2C)
Max. discharging current 160mA (1C)
End voltage of discharge 3.0V
Dimension of cell 3.8*17*30mm
Charging temperature range 0~45℃
Discharging temperature range -20~60℃
Connector Molex, JST connectors etc
Protection Circuit Module (PCM) Overcharge protect,over-discharge protect, over current protect, short-circuit protect
Warranty life 12 months
Certificates
UN38.3, MSDS, IEC62133, CB, KC, BIS, PSE, UL1642, UL2054, Reach, RoHS etc.
