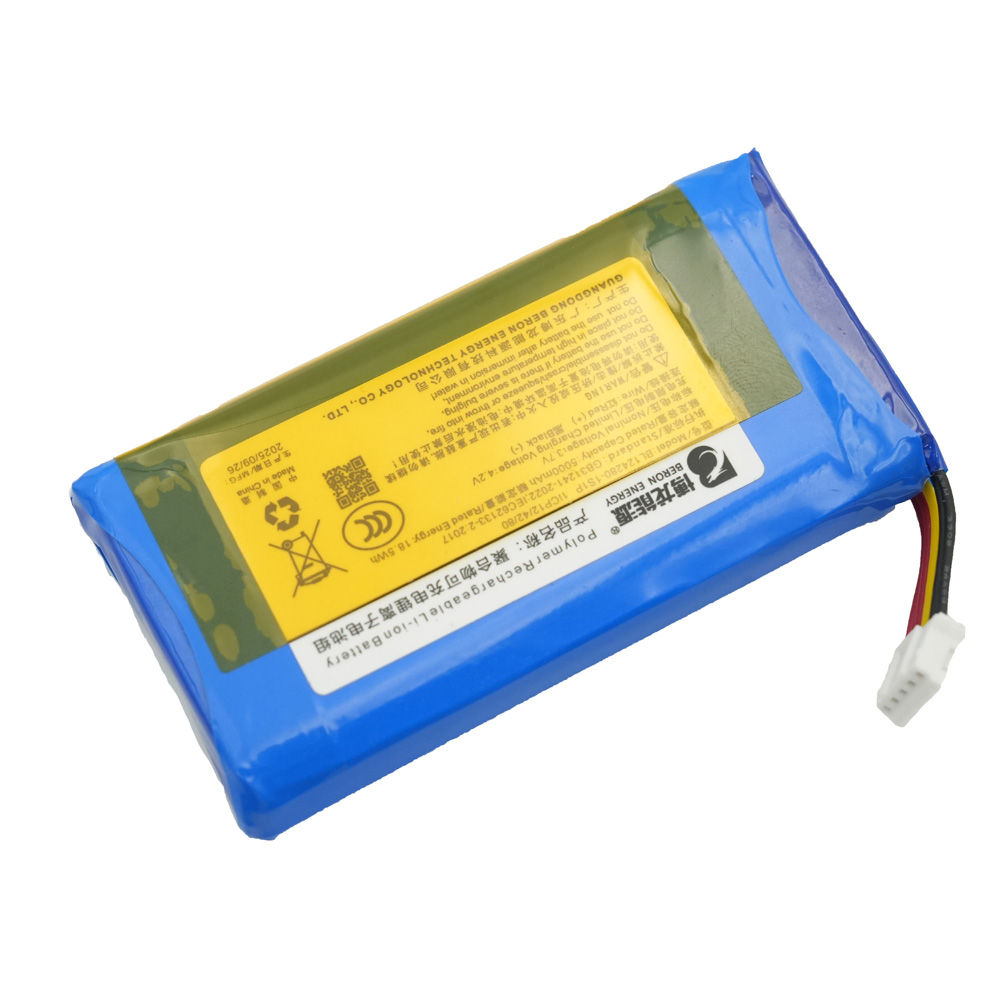

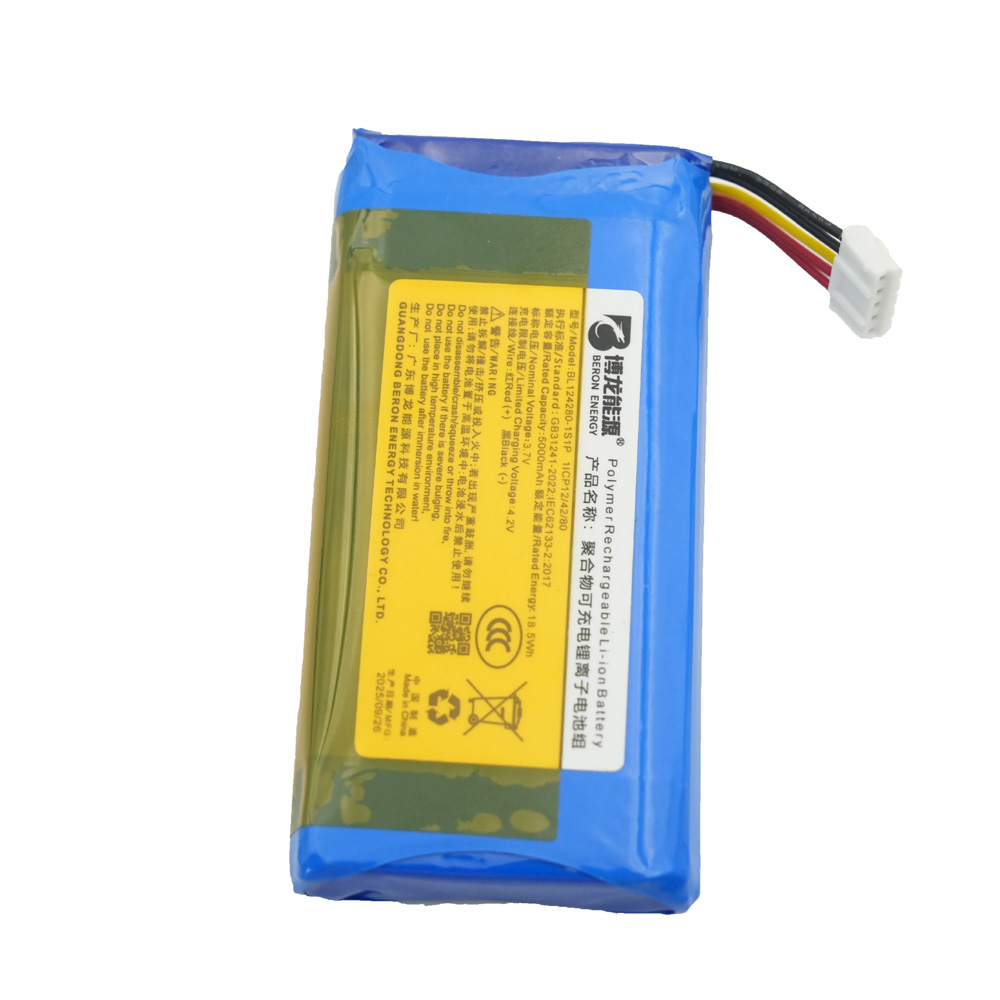

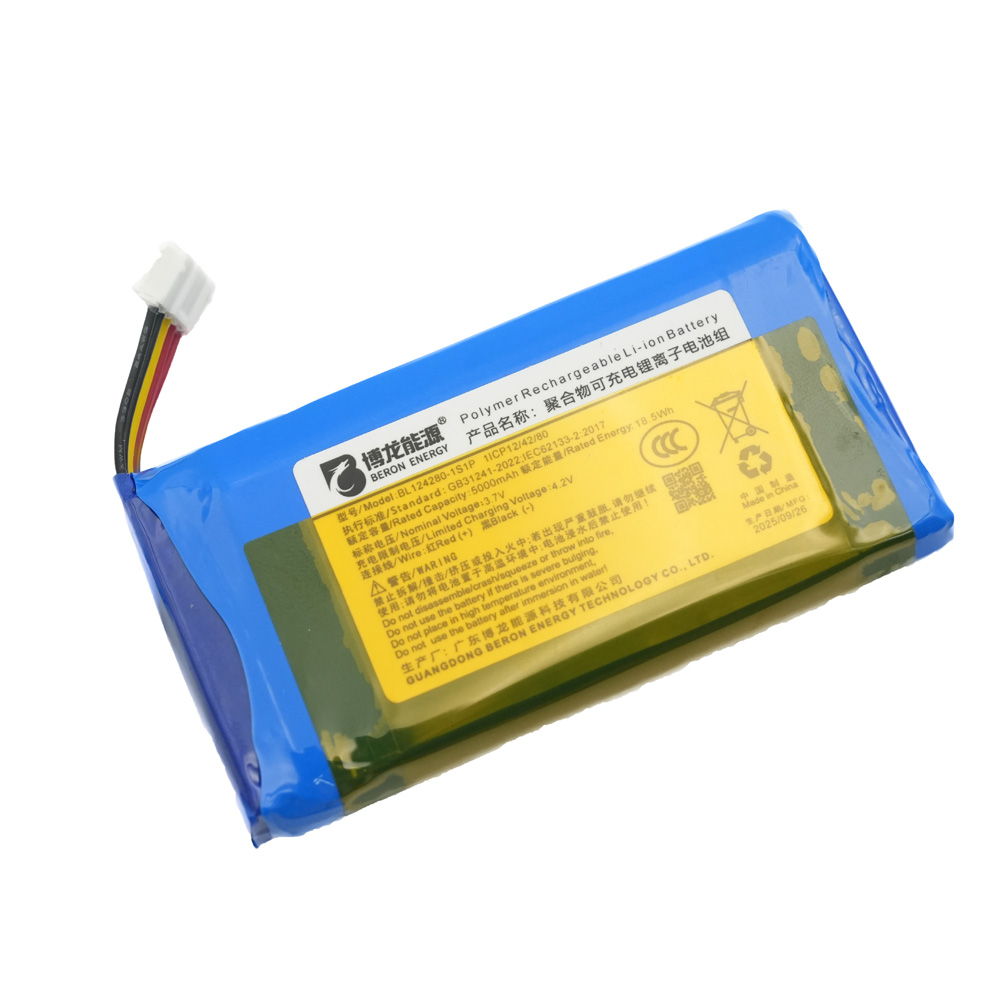

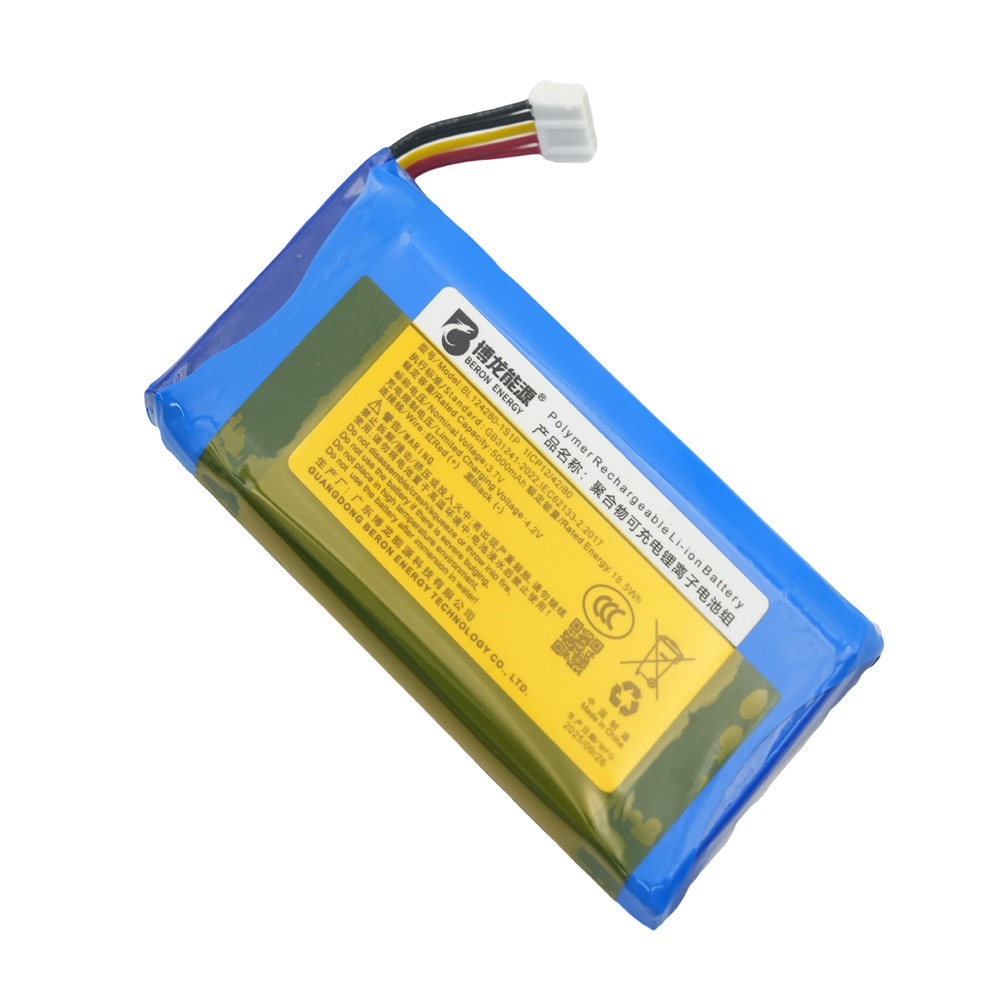

Model: PG042-07-1S1P124280P-5000 Lithium Battery
Specifications: 3.7V rated voltage, 5000mAh capacity, supports 1C standard charge/discharge, 2C maximum discharge
Performance: Charging temperature 0-45℃, discharging temperature -20-60℃, discharge cut-off voltage 2.75V
Certifications: Passed multiple authoritative certifications including UN38.3, IEC62133, and UL
Customization: Interface can be customized, integrated PCM protection circuit ensures safe use.
Battery Model: PG042-07-1S1P124280P-5000
Rated Voltage: 3.7V
Rated Capacity: 5000mAh
Minimum Capacity: 4750mAh
Charging Voltage: 4.2V
Standard Charging Current: 500mA (0.1C)
Termination Current: 50mA (0.01C)
Maximum Charging Current: 5000mA (1C)
Standard Discharging Current: 5000mA (1C)
Maximum Discharging Current: 10000mA (2C)
End – of – Discharge Voltage: 2.75V
Battery Dimensions: 12 * 42 * 80 mm
Charging Temperature Range: 0~45℃
Discharging Temperature Range: -20~60℃
Connectors: Customizable: yes
Protection Circuit Module (PCM):
Certifications: UN38.3, MSDS, IEC62133, CB, KC, BIS, KSE, UL, Reach, RoHS, etc.
