Ultra – thin for easy integration into compact devices.
Low internal resistance, sufficient capacity, excellent cycle life.
Optimized PCM design, supports series/parallel connection.
High safety with multi – protection. Lithium – ion polymer chemistry, high energy density.
Diverse battery terminations: PC pins, SMT mounting, etc.
Custom services: Flexible sizes, customized batteries.
Wide temp range, lightweight.

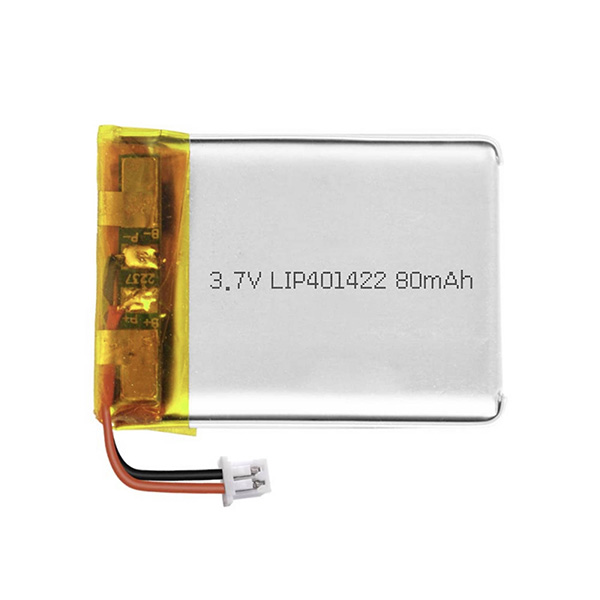

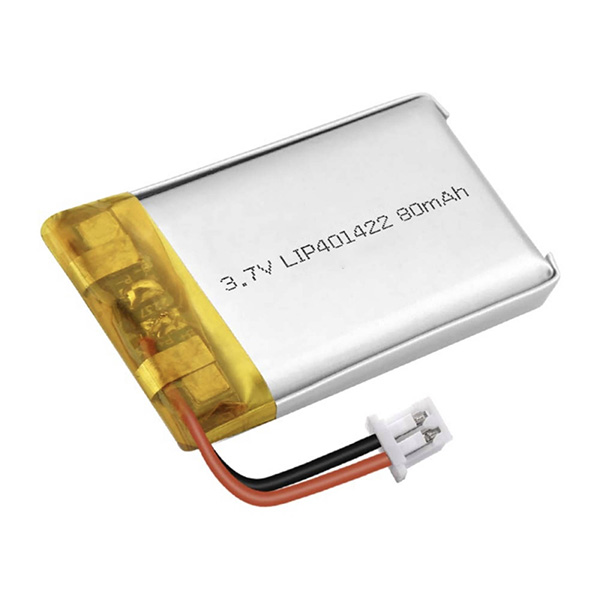

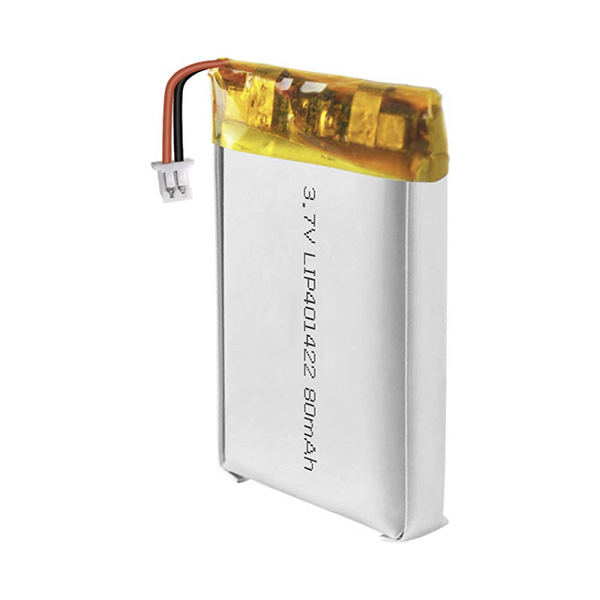

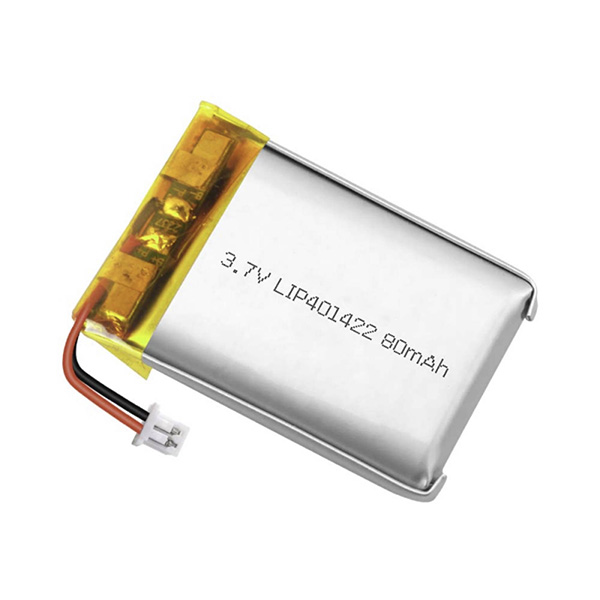

Battery Model: 3.7V LIP401422 80mAh
Rated Voltage: 3.7 V
Rated Capacity: 80 mAh
Minimum Capacity: 80 mAh
Charging Voltage: 4.2 V
Standard Charging Current: 16 mA (0.2C)
Termination Current: 0.80 mA (0.01C)
Maximum Charging Current: 40 mA (0.5C)
Standard Discharging Current: 16 mA (0.2C)
Maximum Discharging Current: 80 mA (1C)
End – of – Discharge Voltage: 3.0 V
Battery Dimensions: 4.0 * 14 * 22 mm
Charging Temperature Range: 0 ~ 45 °C
Discharging Temperature Range: -20 ~ 60 °C
Connectors: Customizable: PC pins (horizontal/vertical), SMT (SMD) mounting, welding tabs, wires, cables with connectors
Protection Circuit Module (PCM): Overcharge protection, over – discharge protection, over – current protection, short – circuit protection
Certifications: UN38.3, MSDS, IEC62133, CB, KC, BIS, KSE, UL, Reach, RoHS, etc.
