Ultra – thin for easy integration into compact devices.
Low internal resistance, sufficient capacity, excellent cycle life.
Optimized PCM design, supports series/parallel connection.
High safety with multi – protection. Lithium – ion polymer chemistry, high energy density.
Diverse battery terminations: PC pins, SMT mounting, etc.
Custom services: Flexible sizes, customized batteries.
Wide temp range, lightweight.

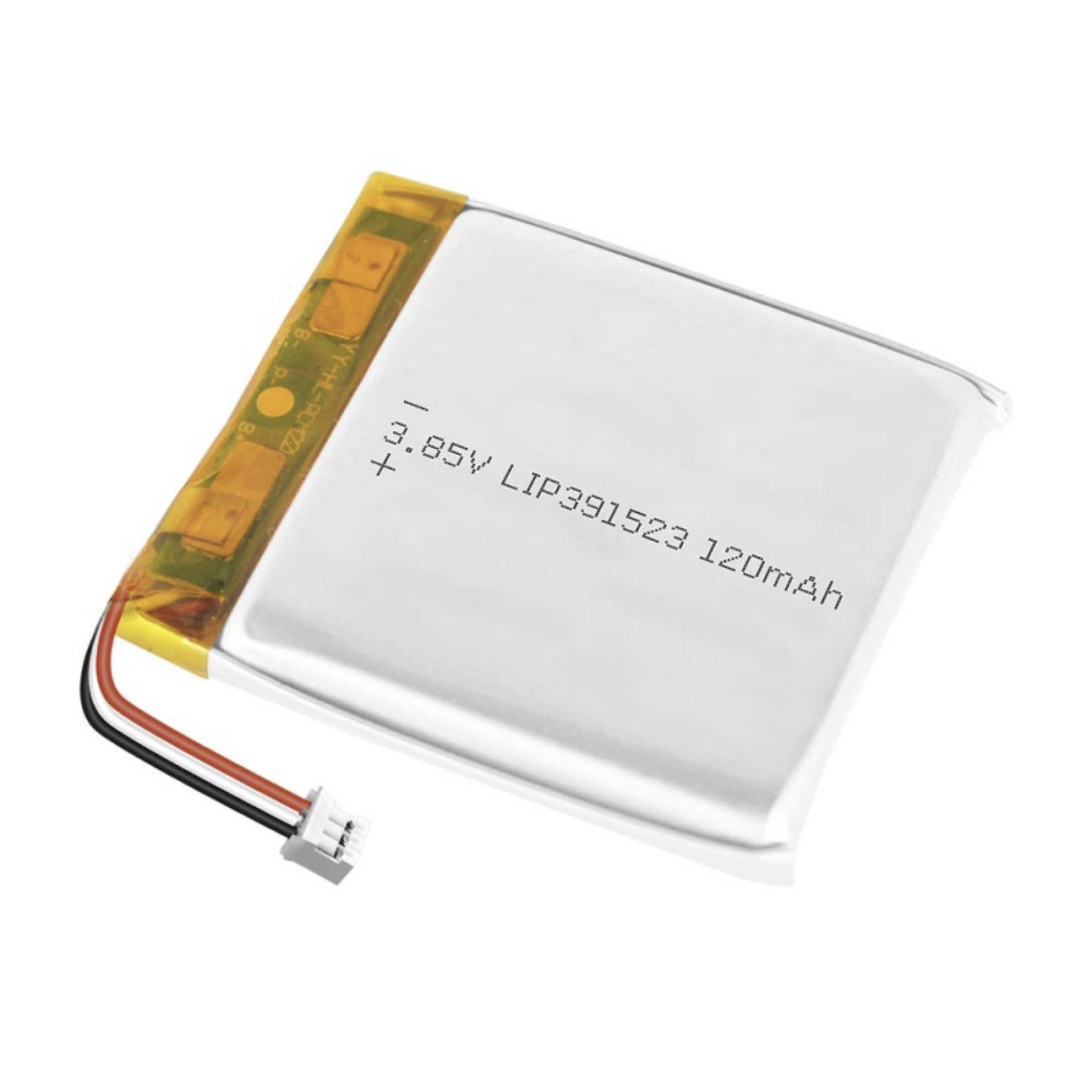

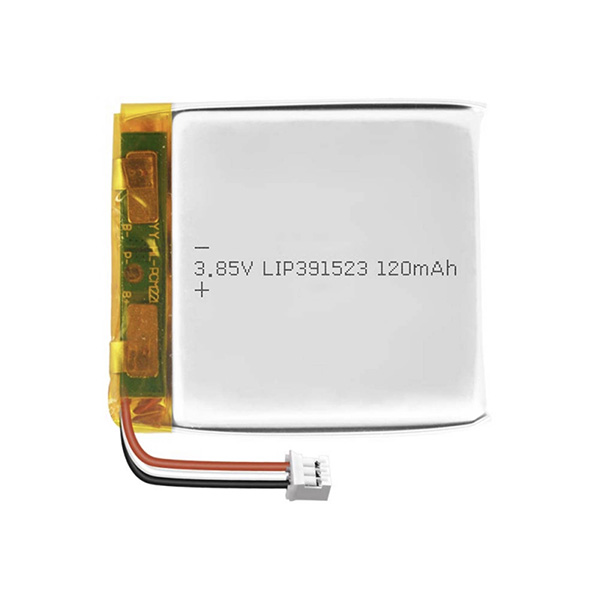

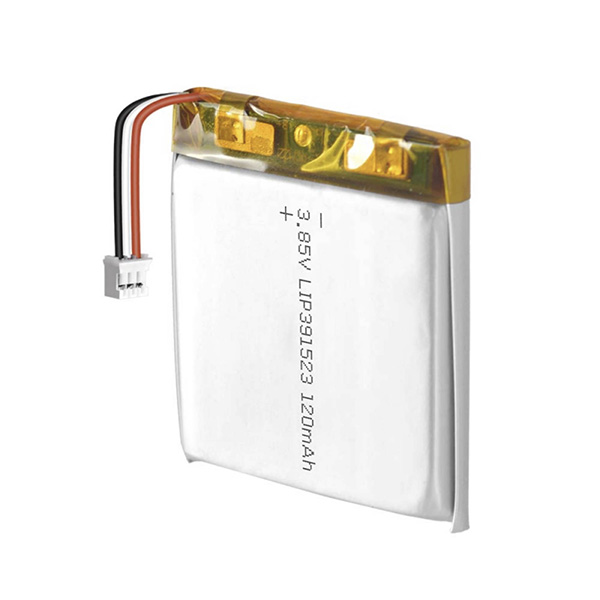

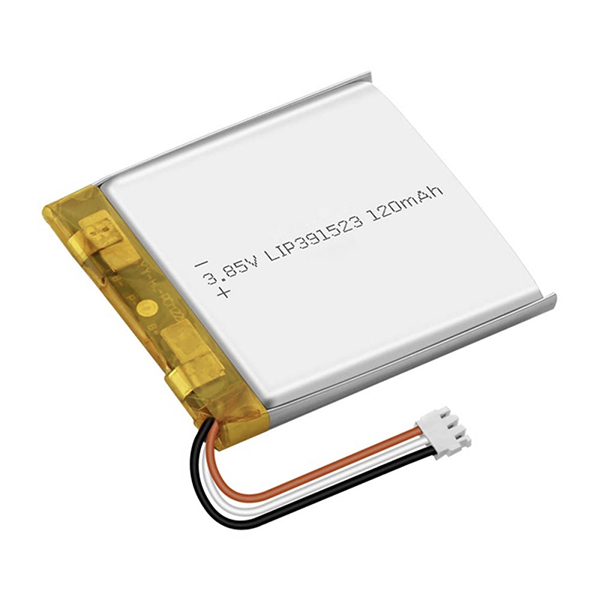

Battery model: 3.7V LIP391523 120mAh
Nominal voltage: 3.7V
Nominal capacity: 120mAh
Minimum capacity: 120mAh
Charging voltage: 4.2V
Standard charging current: 24mA (0.2C)
End current: 1.20mA (0.01C)
Max. charging current: 60mA (0.5C)
Standard discharging current: 24mA (0.2C)
Max. discharging current: 120mA (1C)
End voltage of discharge: 3.0V
Dimension of cell: 3.91523mm
Charging temperature range: 0~45℃
Discharging temperature range: -20~60℃
Connector: Customizable: PC Pins (Horizontal)/(Vertical), SMT (SMD) Mount, Solder Tabs, Wires, Cables with Connectors
Protection Circuit Module (PCM): Overcharge protect, over-discharge protect, over current protect, short-circuit protect
Certificates: UN38.3, MSDS, IEC62133, CB, KC, BIS, KSE, UL, Reach, RoHS etc.
